Change Oil in MFWD Axle-If Equipped

1. Tractor should be positioned on level ground to ensure correct oil levels when filling.

NOTE: Each front wheel hub has a drain/fill plug (C).

2. Remove drain/fill plugs (A, C and D). When draining the wheel hubs, rotate the wheels so the drain/fill hole (C) is in the 6 o'clock position. Drain oil.

3. Rotate the wheels so oil level fill mark (B) is parallel to the ground.

4. Install drain plug (A).

5. Fill differential housing at fill locations (C and D) with SAE 80W-90 Gear Lubricant. (See Fuels, Lubricants and Coolant section.) Fill hubs to oil level fill mark (B), and differential housing to bottom of fill hole (D).

Specification

MFWD Differential Housing Axle Oil -Capacity 5 L (5.2 qt) Approximate
MFWD Wheel Hub Axle Oil (Each) -Capacity 0.7 L (0.74 qt) Approximate
MFWD Assembly Axle Oil -Capacity 6.2 L (6.6 qt) Approximate

IMPORTANT: Check oil level after 30 minutes. Oil flows very slowly through bearings and axle housings. Fill through hub fill port (C) on both sides and differential housing port (D) to reduce fill time. Add oil as needed.

LV6239
M47186

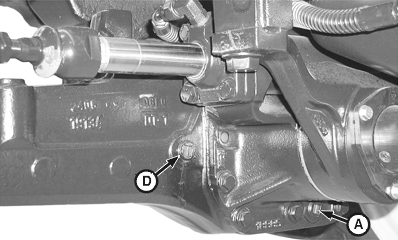

A-Drain Plug
B-Oil Level Fill Mark
C-Wheel Hub Drain/Fill Port Plug
D-Differential Housing Drain/Fill Port Plug
