Lubricate Rear Axle Bearings

NOTE: Rear axle bearing lube fittings do not exist on Hi-Crop tractors.

Lubricate rear axle fittings (A), both sides, with several shots of multipurpose grease. (See Fuels, Lubricants and Coolant section.)

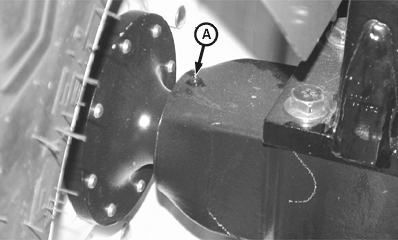

A-Rear Axle Fittings

OUO1043,00002A7 -19-28FEB02-1/1
