Clean Cab Air Filters

CAUTION: The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.

NOTE: Late model tractor shown. Early model tractor is similar.

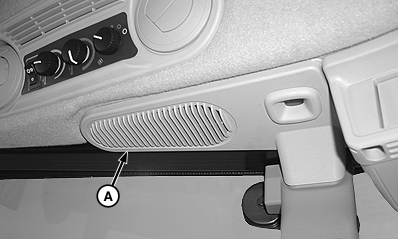

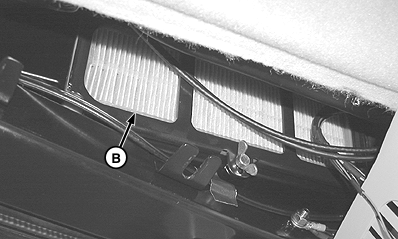

Remove filter covers (A) and filters (B). Clean filters under running water and dry with compressed air. Cleaning filters may be required more often in dusty conditions.

A-Filter Cover
B-Recirculated Air Filter

OUO1043,00002B0 -19-05AUG03-1/2

NOTE: A fresh air intake filter is located above each cab door, under roof.

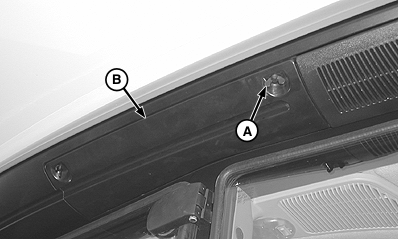

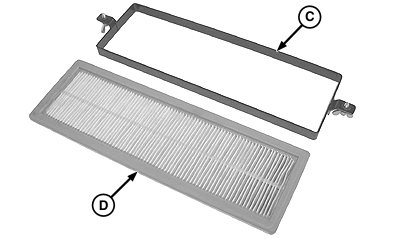

Remove screws (A), filter cover (B), retainer plate (C) and filter (D). Clean filters with compressed air. Inspect filters for damage. Replace as necessary.

A-Screws (2 used)
B-Filter Cover
C-Retainer Plate (2 used)
D-Fresh Air Filter (2 used)

OUO1043,00002B0 -19-05AUG03-2/2
