Adjusting Rockshaft Control Lever Friction

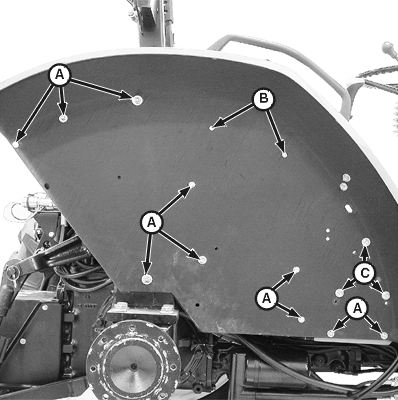

NOTE: To access friction adjustment bolts on straddle mount tractors, remove nuts and cap screws (A, B, and C) and right rear fender. Straddle mount tractor shown with right rear tire removed for clarity of photo.

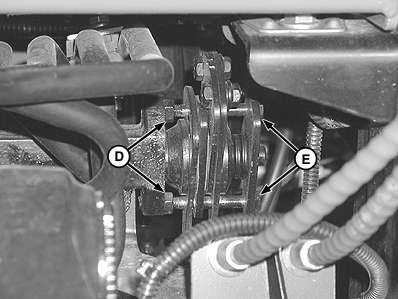

If rockshaft position control lever or draft control lever do not stay in set position, increase lever friction by loosening the two jam nuts (D), tightening the two adjusting bolts (E) equally until the proper friction is obtained. Tighten jam nuts again after the adjustment is complete.

A-Cap Screw and Nut
B-SCV Lever Guide Nut and Cap Screw
C-Loader Joystick Nut and Cap Screw
D-Jam Nuts (2 used)
E-Adjusting Bolts (2 used)

OUO1043,00002B1 -19-05AUG03-1/1
