Adjusting Seat (Deluxe Adjustable Seat)-Early Model Tractor

There are three seat adjustments available:

Move lever (A) and slide seat closer to or away from dash panel and controls.

Turn ride comfort adjustment knob (B) clockwise or counterclockwise until weight indicated by weight indicator (C) matches operator weight.

Raise seat adjustment lever (D) and lift seat to raise or press seat to lower. Release seat adjustment lever to lock seat at desired height.

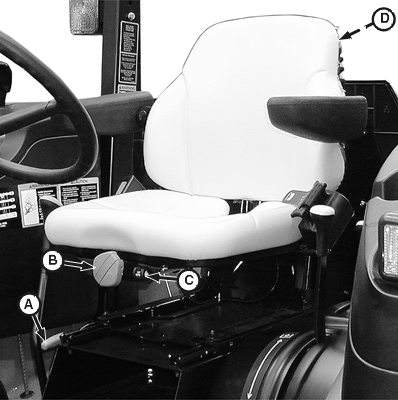

A-Seat Adjustment Lever-Fore or Aft
B-Ride Comfort Adjustment Knob
C-Weight Indicator
D-Seat Adjustment Lever-Lower or Raise

OUO1043,00002B4 -19-14NOV03-1/1
