Adjusting Seat

There are two seat adjustments available:

Move lever (B) and slide seat closer to or away from dash panel and controls.

To raise or lower seat: Use a wrench to adjust cap screws (A) to desired seat height.

Turn knob (C) to adjust seat suspension for a firm or soft ride.

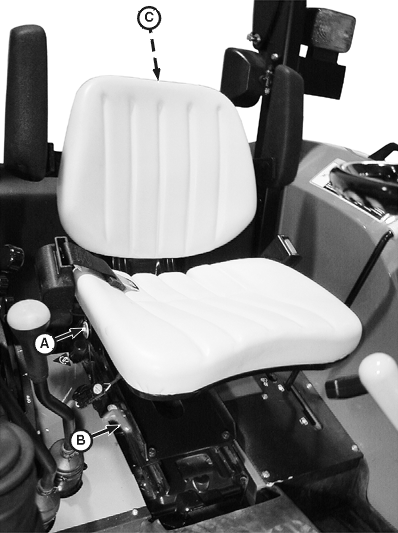

A-Seat Adjustment Cap Screws-Lower or Raise
B-Seat Adjustment Lever-Fore or Aft
C-Seat Adjustment Knob-Ride Comfort

OUO1043,00002C0 -19-07FEB01-1/1
