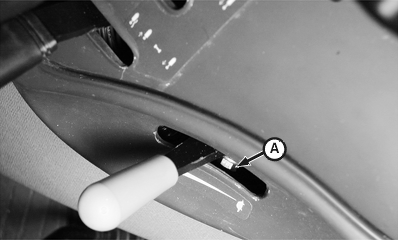

Adjust Hand Throttle Friction (Isolated Open Operator Station and Cab)When hand throttle linkage becomes loose and does not stay in set position, adjust spring tension by loosening or tightening lock nut (A) until throttle lever movement is smooth throughout range of travel with only slight drag.
|
|
OUO1043,00002C3 -19-28FEB02-1/1 |
