Adjust 540E PTO Throttle Limiter (Straddle Mount and Hi-Crop)

With no load, engine rpm should be 1850-1900 with hand throttle lever forward and no load. Adjust T-bolt (A) under foot throttle and tighten jam nut (B).

Load engine to 1700 rpm to obtain 540 PTO rpm in 540E position.


A-T-Bolt
B-Jam Nut

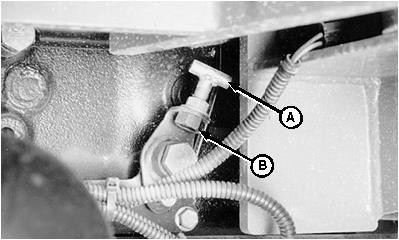

LV1564

Right-Hand Side-Under Foot Throttle

OUO1043,00002C5 -19-28FEB02-1/1
