SCV Control Lever and Coupler Identification (If Equipped)

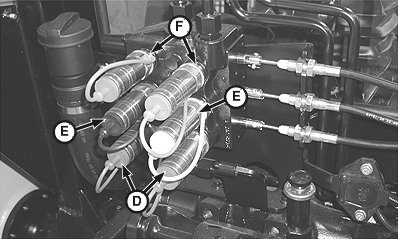

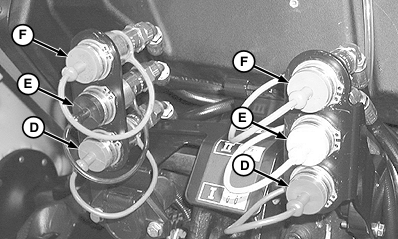

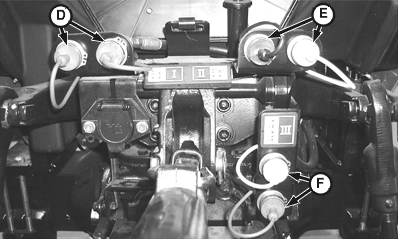

SCV levers control oil flow to hydraulic hose couplers at the rear of the tractor.
-
SCV I lever (A) operates coupler (D).
-
SCV II lever (B) operates coupler (E).
-
SCV III lever (C) operates coupler (F).
A-SCV I Lever-Float
B-SCV II Lever-Regenerative (SCV II becomes Float when third SCV is added)
C-SCV III Lever-Regenerative
D-SCV I Coupler-Float
E-SCV II Coupler-Regenerative (SCV II becomes Float when third SCV is added)
F-SCV III Coupler-Regenerative
|
