Operating SCV Controls

causym CAUTION: NEVER operate tractor with valve cover removed. High-pressure oil spray can cause serious injury.

Extend and Retract Cylinders:

With hoses properly connected to couplers, push lever forward against spring pressure to extend remote cylinder. Spring pressure returns lever to neutral when released. With lever in neutral, remote cylinder is hydraulically locked in position. Pull lever back against spring pressure to retract cylinder.

Float Position-SCV I and SCV II Only: When Equipped with Third SCV

Push lever forward into detent to operate "float" feature.

Float operation allows cylinder to extend and retract freely, such as when an implement follows ground contour.

LV6368

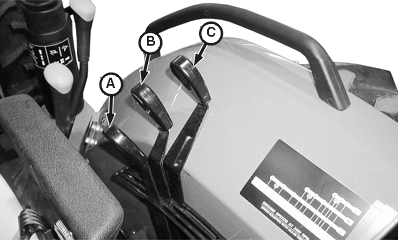

Straddle Mount and Hi-Crop

LV6367

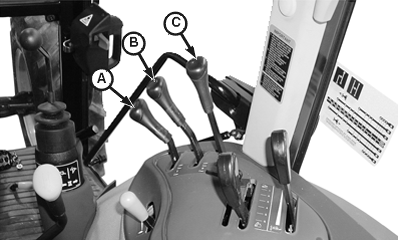

Cab Shown; IOOS Similar


A-SCV I Lever-Float
B-SCV II Lever-Regenerative (SCV II becomes Float when third SCV is added)
C-SCV III Lever-Regenerative
