Storing Tractor

IMPORTANT: Any time tractor will not be used for several months, use this procedure to minimize corrosion and deterioration. Use an AR41785 Engine Storage Kit and an extra 0.95 L (1 pt) of AR41870 Corrosion Inhibitor.

NOTE: 5220 and 5320 shown. Other models are similar.

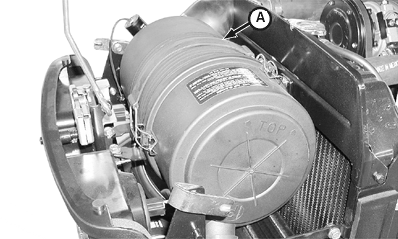

1. Service air cleaner (A). (See Service Air Cleaner at Regular Intervals in Service section.)

2. If coolant has been in tractor for two years, flush cooling system. (See Flush Cooling System in Service-2 Years/2000 Hours section.) Add 50 percent antifreeze water mixture. Test coolant for adequate cold weather protection.

3. Change engine oil and filter (B). (See Change Engine Oil and Filter in Service-100 Hours section.)

4. Drain fuel and add back 4 L (1 gal) of fuel. Then add 0.4 L (12 oz) of corrosion inhibitor.

A-Air Cleaner
B-Engine Oil Filter

OUO1043,000046A -19-05AUG03-1/4

5. Add 0.25 L (9 oz) of corrosion inhibitor to transmission-hydraulic system fill port (A).

6. Depress clutch and start engine. Run engine until it reaches operating temperature. Also raise and lower rockshaft several times. Shut off engine.

A-Transmission-Hydraulic System Fill Port

Cab Shown; Other Tractors Similar

OUO1043,000046A -19-05AUG03-2/4

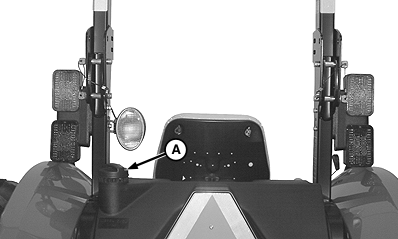

7. Add 0.5 L (16 oz) more inhibitor to fuel tank at filler/cap (A).

8. Add 0.5 L (16 oz) inhibitor to engine crankcase at filler/breather (B).

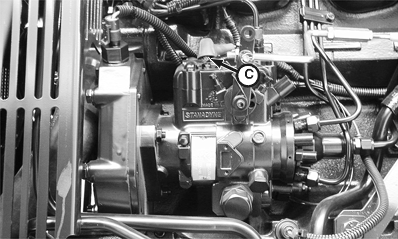

9. Remove boot and disconnect fuel shut-off solenoid wiring lead (C). This will prevent engine from starting while cranking.

10. Remove air intake hose at manifold. Pour 0.1 L (3 oz) inhibitor into manifold and replace hose. Pull hand throttle back to slow idle position. Crank engine only a few revolutions.

11. Loosen alternator/fan belt and A/C compressor belt (cab) after they have cooled.

12. Remove and clean battery. Store in a cool, dry place. Keep battery charged. ¹

13. On CollarShift and SyncShuttle™ tractors, tie or block clutch pedal in the disengaged position.

14. Coat exposed metal surfaces, such as adjustable front axles, if extended, with grease or a corrosion inhibitor.

A-Fuel Tank Filler/Cap
B-Crankcase Filler/Breather
C-Fuel Shut-Off Solenoid Wiring Lead

Late Model Straddle Mount Shown; Other Tractors Similar

LV5433

LV6362

¹Disconnect battery ground cable for short-term storage periods (20 to 90 days).

OUO1043,000046A -19-05AUG03-3/4

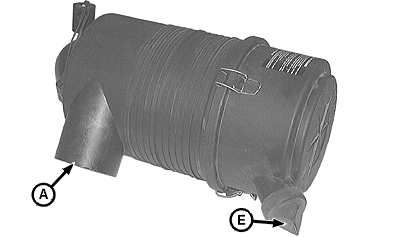

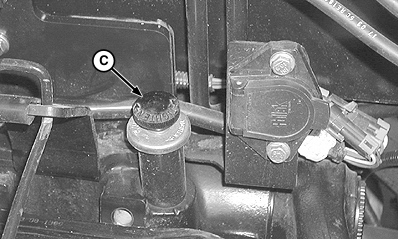

15. Use tape to seal air inlet hole (A), dust unloader valve (E), exhaust pipe, crankcase filler/breather (B), fuel cap, coolant recovery tank, and transmission-hydraulic system filler/cap (C).

16. Cover dash with opaque material to prevent gauges from fading.

17. Raise tires off ground. Protect them from heat and sunlight.

18. Thoroughly clean tractor. Touch up any painted surfaces that are scratched or chipped.

19. If tractor must be stored outside, cover it with a waterproof material.

20. Cab: Rotate A/C compressor pulley (D) several turns once a month to prevent seizure of compressor.
