OMRE199128: 5220, 5320, 5420, and 5520 Tractors, Block File: OUO1043_0000E76_19

Tread Settings-Multi-Position Rear Wheels-Early Model Tractor

Wheel tread on rear axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor (this maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing rear wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation.

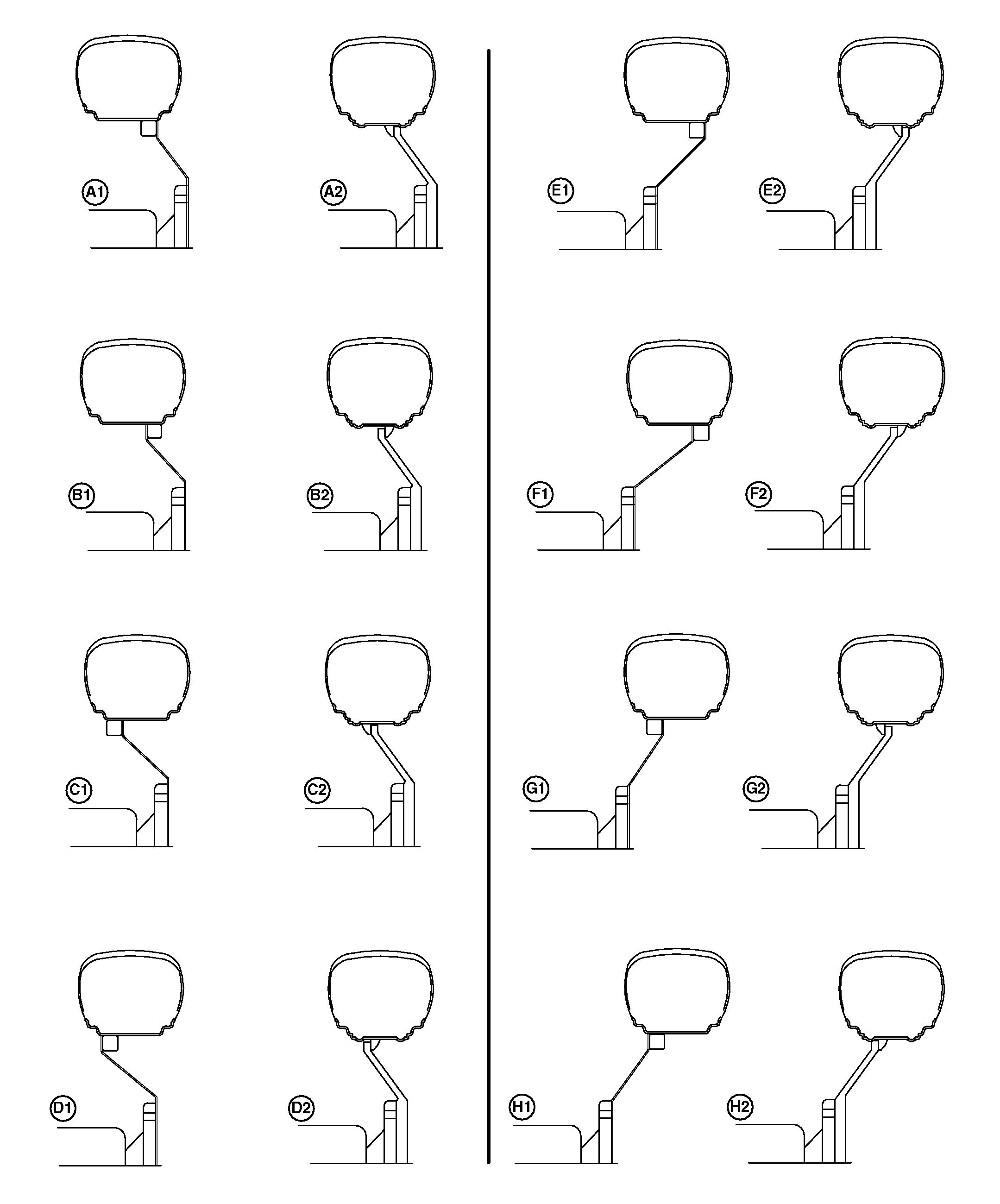

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams on the facing page.

NOTE: A1 is a steel disk and A2 is a cast disk (unless otherwise noted).

A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

OUO1043,0000E76 -19-14NOV03-1/4

IMPORTANT: After setting wheel spacing, tighten rear wheel rim-to-disk bolts and rear wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again.

Specification

Rear Wheel Rim-to-Disk (Early Model Steel Disk) Bolts -Torque	245 N·m (180 lb-ft)
Rear Wheel Rim-to-Disk (Cast Disk) Bolts -Torque	215 N·m (160 lb-ft)
Rear Wheel Rim-to-Disk (Veggie Disk) Bolts -Torque	235-250 N·m (175-185 lb-ft)
Rear Steel Wheel Disk-to-Hub M16 Bolts -Torque	175 N·m (130 lb-ft)
Rear Cast Wheel Disk-to-Hub M16 Bolts -Torque	225 N·m (165 lb-ft)
Rear Wheel Disk-to-Hub (Veggie Disk) Bolts -Torque	200 ± 40 N·m (148 ± 30 lb-ft)

STEEL AND CAST DISKS REAR TREAD WIDTH Centerline-to-Centerline
STEEL DISK			CAST DISK
Diagram	Tire Sizes		Diagram	Tire Sizes
	13.6-28 14.9-28 16.9-24 16.9-28	16.9-30 18.4-30		16.9-30 18.4-30 15.5-38
A1	Not available	Not available	A2	Not available
B1	Not available	Not available	B2	Not available
C1	Not available^a	Not available	C2	Not available
D1	1417 mm (55.8 in.)	1366 mm (53.8 in.)	D2	Not available
E1	1513 mm (59.6 in.)	1563 mm (61.5 in.)	E2	1535 mm (60.4 in.)
F1	1617 mm (63.7 in.)	1665 mm (65.6 in.)	F2	1634 mm (64.3 in.)
G1	1716 mm (67.6 in.)	1668 mm (65.7 in.)	G2	1729 mm (68 in.)
G1^b	1919 mm (75.6 in.)	1871 mm (73.7 in.)	G2^b	1933 mm (76.1 in.)
H1	1820 mm (71.7 in.)	1770 mm (69.7 in.)	H2	1838 mm (72.4 in.)
H1^b	2024 mm (79.7 in.)	1973 mm (77.7 in.)	H2^b	2042 mm (80.4 in.)
^a1313 mm (51.7 in.) for 14.9-24, 36.6-28 and 14.9-28 tires only.
^bRequires 102 mm (4.0 in.) axle spacers.

OUO1043,0000E76 -19-14NOV03-2/4

VEGGIE DISKS REAR TREAD WIDTH Centerline-to-Centerline 9.5R48 Tire Size
Diagram	No Spacer	30 mm Spacer	55 mm Spacer	4 in. Spacer
A1	1097 mm (43.2 in.)	1157 mm (45.5 in.)	1207 mm (47.5 in.)	1300 mm (51.2 in.)
B1	1201 mm (47.3 in.)	1261 mm (49.7 in.)	1311 mm (51.6 in.)	1404 mm (55.3 in.)
C1	1328 mm (52.3 in.)	1388 mm (54.7 in.)	1438 mm (56.6 in.)	1531 mm (60.3 in.)
D1	1433 mm (56.4 in.)	1493 mm (58.8 in.)	1543 mm (60.7 in.)	1636 mm (64.4 in.)
E1	1503 mm (59.2 in.)	1563 mm (61.5 in.)	1613 mm (63.5 in.)	1706 mm (67.2 in.)
F1	1608 mm (63.3 in.)	1668 mm (65.7 in.)	1718 mm (67.6 in.)	1811 mm (71.3 in.)
G1	1735 mm (68.3 in.)	1795 mm (70.7 in.)	1845 mm (72.6 in.)	1938 mm (76.3 in.)
H1	1839 mm (72.4 in.)	1899 mm (74.8 in.)	1949 mm (76.7 in.)	2042 mm (80.4 in.)

HI-CROP Tread Width
	Diagram
	A1	B1	C1	D1	E1	F1	G1	H1	H1^a
Tread Width Centerline-to-Centerline	1264 mm (49.8 in.)	1361 mm (53.6 in)	1537 mm (60.5 in.)	1634 mm (64.3 in.)	1664 mm (65.5 in.)	1761 mm (69.3 in.)	1937 mm (76.3 in.)	2034 mm (80.1 in.)	2154 mm (84.8 in.)
^aRequires 60 mm (2.4 in.)
