Tread Settings-Multi-Position MFWD Wheels-Early Model Tractor

Wheel tread on MFWD axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing MFWD wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation. In certain applications, MFWD equipped tractors may operate with the arrows in the opposite direction. See Selecting Front Tire Rolling Direction in this chapter.

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams. A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

OUO1043,0000E77 -19-14NOV03-1/3

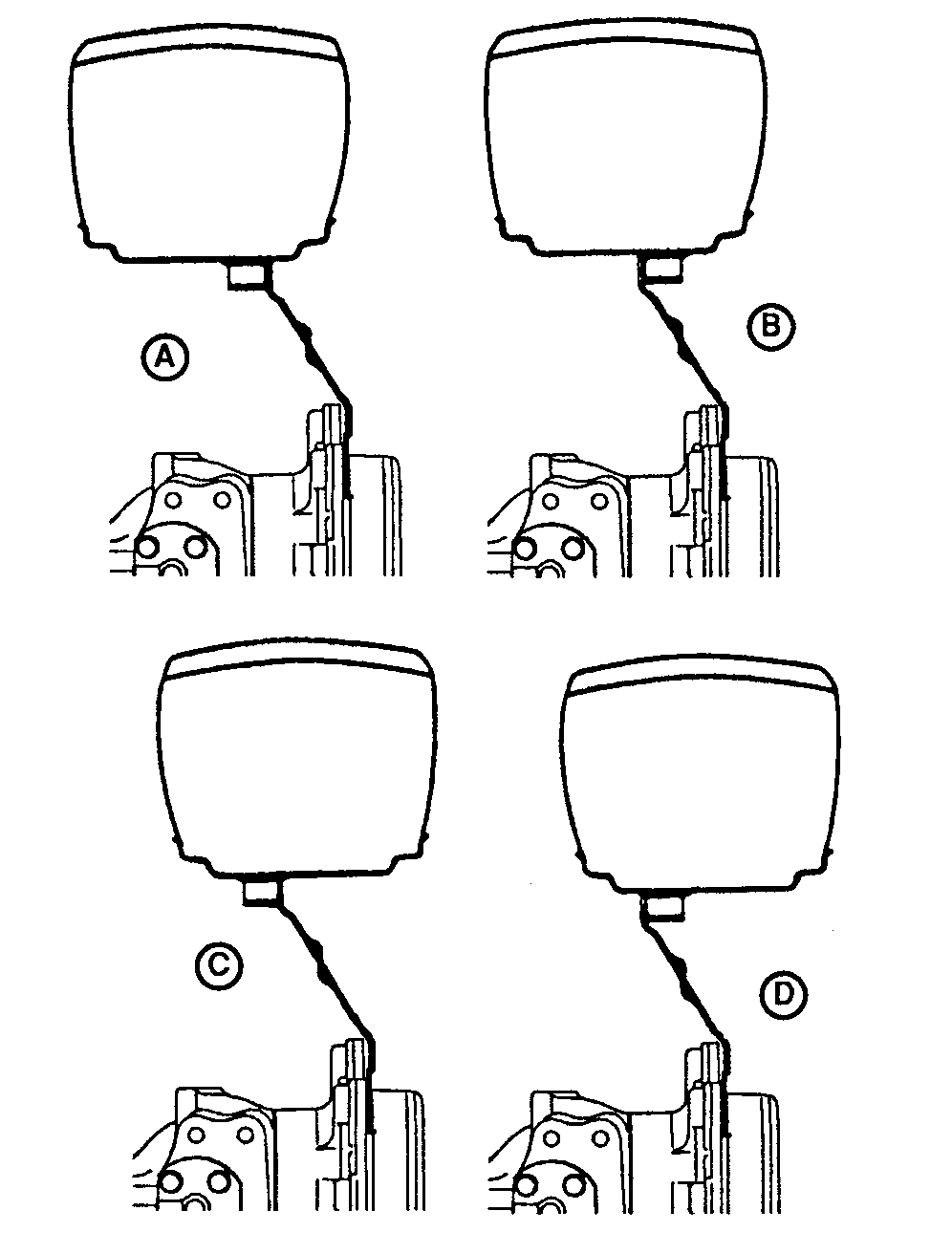

LV601

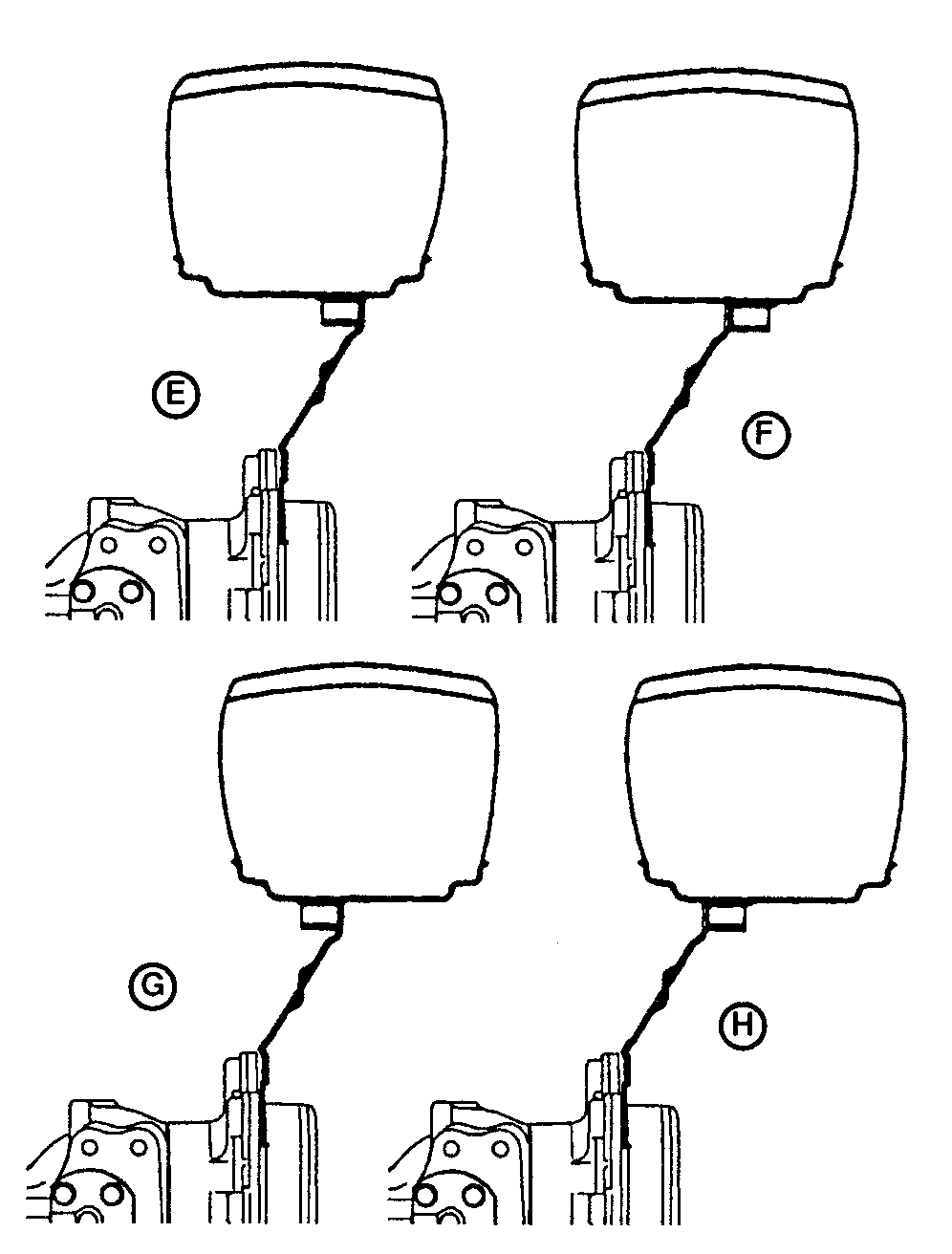

LV602

OUO1043,0000E77 -19-14NOV03-2/3

IMPORTANT: After setting wheel spacing, tighten MFWD wheel rim-to-disk bolts and MFWD wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again.

Specification

MFWD Wheel Rim-to-Disk Bolts -Torque 245 N·m (180 lb-ft)
MFWD Wheel Disk-to-Hub Nuts -Torque 300 N·m (220 lb-ft)

MFWD TREAD WIDTH
  Tire Sizes
Diagram 8.3-24, 9.5-24 11.2-24, 12.4-24, 13.6-24 Veggie 9.5R32 Veggie 9.5R32 (with 2 in. Spacer)
A 1317 mm (51.9 in.) 1292 mm (50.9 in.)a 1370 mm (53.9 in.) 1472 mm (57.9 in.)
B 1430 mm (56.3 in.) 1405 mm (55.3 in.)a 1469 mm (57.8 in.) 1570 mm (61.8 in.)
C 1470 mm (57.9 in.) 1495 mm (58.9 in.)b 1424 mm (56.1 in.) 1526 mm (60.1 in.)
D 1583 mm (62.3 in.) 1608 mm (63.3 in.) 1522 mm (59.9 in.) 16242 mm (63.9 in.)
E 1717 mm (67.6 in.) 1691 mm (66.6 in.) 1776 mm (69.9 in.) 1878 mm (73.9 in.)
F 1830 mm (72.0 in.) 1804 mm (71.0 in.) 1875 mm (73.8 in.) 1977 mm (77.8 in.)
G 1869 mm (73.6 in.) 1894 mm (74.6 in.) 1831 mm (72.1 in.) 1932 mm (76.1 in.)
H 1982 mm (78.0 in.) 2007 mm (79.0 in.) 1929 mm (75.9 in.) 2031 mm (79.9 in.)
aNot recommended.
bThe 13.6-24 R1 MFWD tire is compatible with 540 loaders in the 1495 mm (58.9 in.) front tread setting only. Steering stops must be set 52 mm (2 in.).



OUO1043,0000E77 -19-14NOV03-3/3
