Change Transmission-Hydraulic Oil and Filter

1. Lower rockshaft to remove trapped oil.

NOTE: The approximate transmission case oil capacity for CollarShift and SyncShuttle™ Transmission is 38 L (10 gal), 68 L (18 gal) for Hi-Crop. The approximate transmission case oil capacity for PowrReverser™ Transmission is 42.5 L (11.5 gal), 76 L (20 gal) for Hi-Crop.

2. Remove drain plug (C) from transmission case on tractors without MFWD. Drain oil into pan and dispose of waste oil properly.

If equipped with MFWD axle, also remove drain plug (B) in drop housing.

On Hi-Crop Tractors, remove drain plug (D) from each drop axle.

3. Replace filter (A) while changing oil. Apply a film of oil to new filter gasket and install new filter. Hand-tighten only.

4. Fill system with transmission-hydraulic oil. (See Fuels, Lubricants and Coolant section.)

Specification

CollarShift and SyncShuttle™ Transmission -Capacity 38 L (10 gal) 68 L (18 gal) Hi-Crop
PowrReverser™ Transmission -Capacity 42.5 L (11.5 gal) 76 L (20 gal) Hi-Crop

LV8547
LV7202

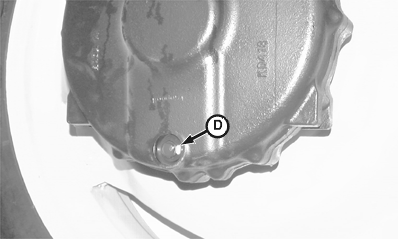

Drop Axle Drain Plug-Hi-Crop Only

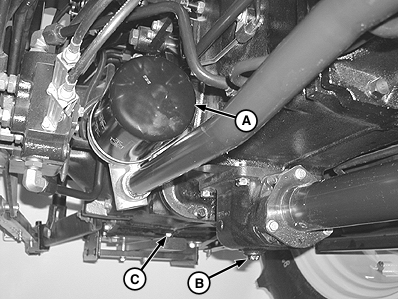

A-Filter
B-MFWD Drain Plug
C-Transmission Case Drain Plug
D-Drop Axle Drain Plug (2 used)

OUO1043,0000E7D -19-20NOV03-1/2

5. Check oil level at dipstick (E) after filling, and again after operating for five minutes.


E-Dipstick

LV6273

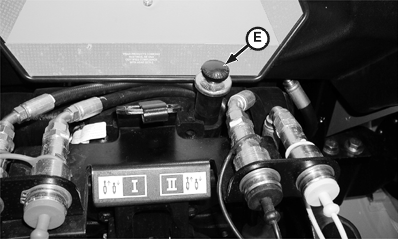

Straddle Mount and Hi-Crop-Early Model Shown; Late Model Similar

LV8546

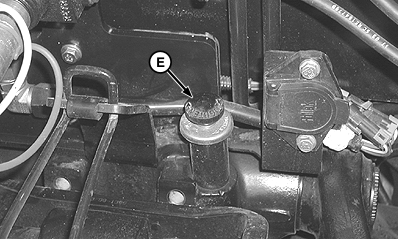

IOOS Shown; Cab Similar

OUO1043,0000E7D -19-20NOV03-2/2
