Optimizing A/C and Heater Performance

Deicing or Demisting the Windshield:

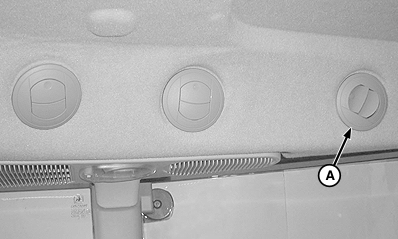

Set the air conditioning to maximum heat output. Aim the two front vents (A) towards the windshield. Closing off the other vents may be helpful until the windshield is cleared.


A-Front Vent

LV8596

OUO1080,00002AB -19-18MAR03-1/3

Heating and Cooling:

To heat or cool your body more efficiently, aim the individual vents, on each side of the headliner, to different parts of your body.

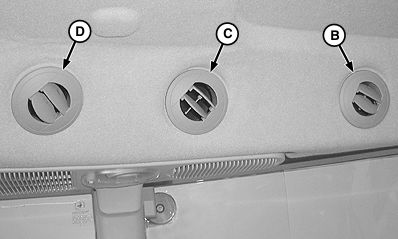

  • Aim front vents (B) toward legs and mid-body.
  • Aim middle vents (C) toward your head.
  • Aim rear vents (D) toward your back.


B-Front Vent
C-Middle Vent
D-Rear Vent

LV8598

OUO1080,00002AB -19-18MAR03-2/3

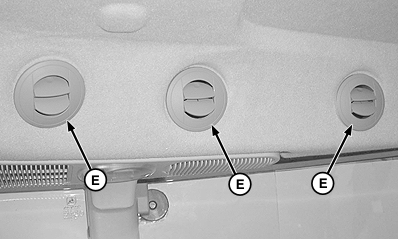

To heat the floor and feet, aim the vents (E) downward.


E-Vents

LV8597

OUO1080,00002AB -19-18MAR03-3/3
