Keep Cab Protection System Installed Properly

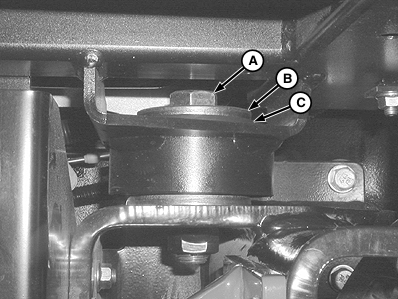

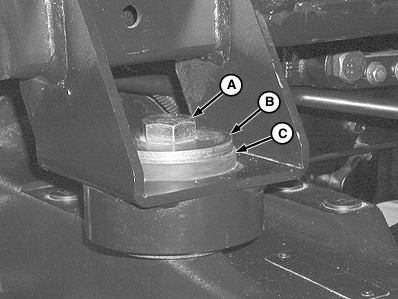

A-Cap Screw (4 used)
B-Washer (4 used)
C-Isolator (4 used)

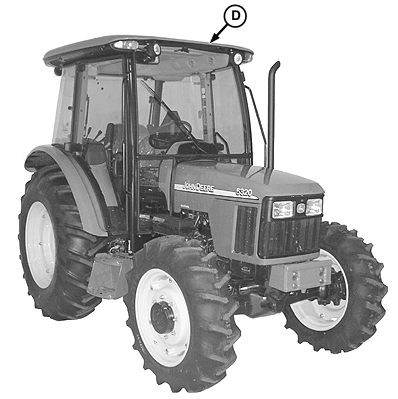

D-Cab Protection System

CAUTION: Make certain all parts are installed correctly if cab protection system is loosened or removed for any reason. Tighten mounting cap screws to specification.

The protection offered by cab protection system will be impaired if cab protection system is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged cab protection system should be replaced, not reused. Any alteration to the cab protection system must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing cab protection system (D), mounting cap screws (A) should be tightened to specification.

Specification

Inspect cab protection system mounting hardware every 250 hours for proper torque or replacement.

OUO1080,00002B7 -19-23JUL03-1/1
