OMRE199128: 5220, 5320, 5420, and 5520 Tractors, Block File: OUO1080_00002CC_19

Tread Settings-Multi-Position Rear Wheels-Late Model Tractor

Wheel tread on rear axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor (this maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing rear wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation.

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams on the facing page.

A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

OUO1080,00002CC -19-20NOV03-1/4

IMPORTANT: After setting wheel spacing, tighten rear wheel rim-to-disk bolts and rear wheel disk-to-hub bolts to

specification. Drive tractor 100 m (109 yd) and tighten again.

Item	Measurement	Specification
Rear Wheel Rim-to-Disk (Late Model Steel 24" & 28" Wheels)	Torque	245 N·m (180 lb-ft)
Rear Wheel Rim-to-Disk (Late Model Steel 18.4-30 & 15.5-38 Wheels)	Torque	350 N·m (255 lb-ft)
Rear Steel Wheel Disk-to-Hub M20 Bolts	Torque	600 N·m (445 lb-ft)

OUO1080,00002CC -19-20NOV03-2/4

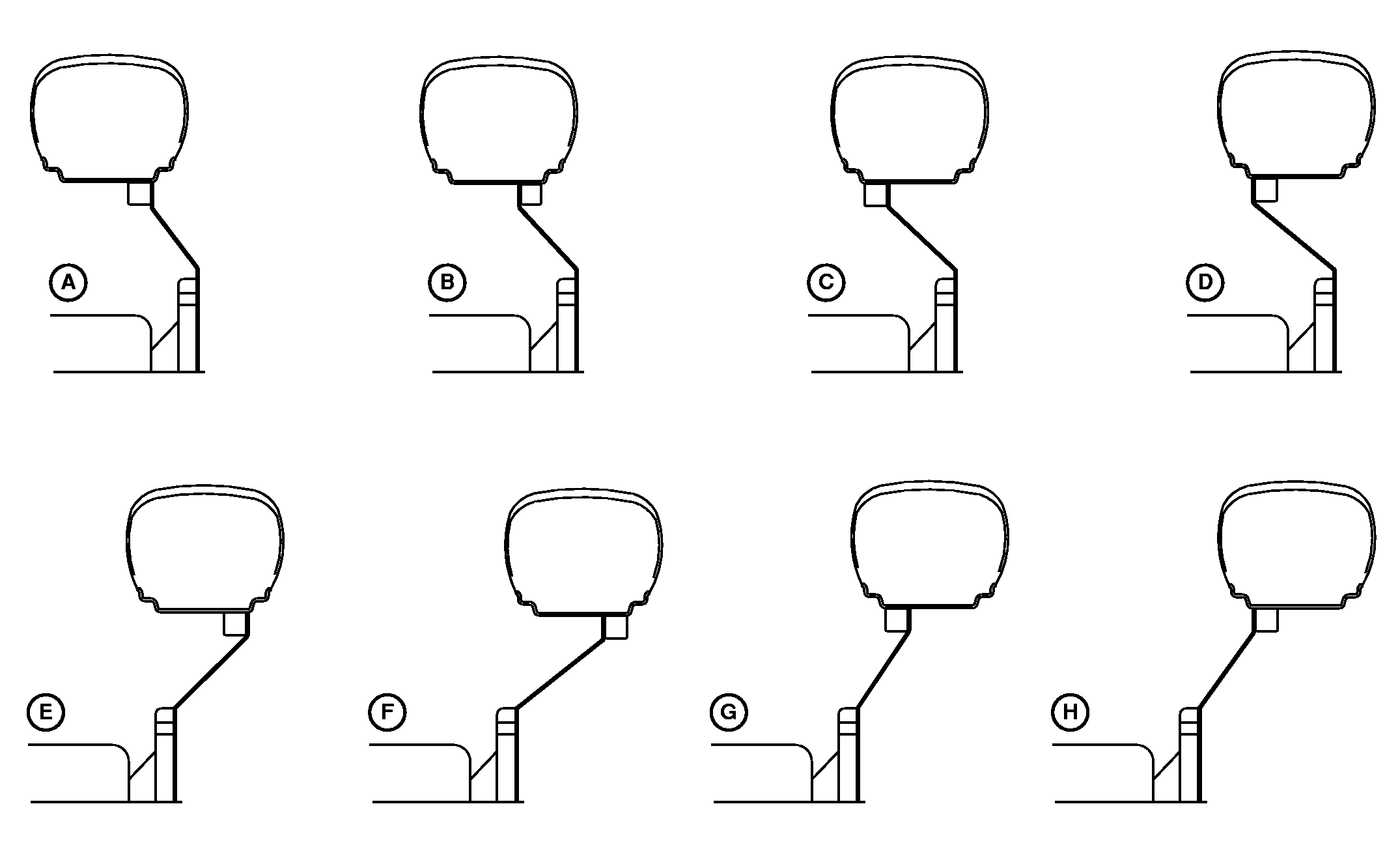

MULTI-POSITION REAR WHEELS TREAD WIDTH Centerline-to-Centerline
	Diagram
Tire	A	B	C	D	E	F	G	H
16.9-24 6PR R1	INT^a	INT^a	INT^a	INT^a	1512 mm (59.5 in.)	1617 mm (63.7 in.)	1715 mm (67.5 in.)	1820 mm (71.7 in.)
16.9-24 6PR R3	INT^a	INT^a	INT^a	INT^a	1512 mm (59.5 in.)	1617 mm (63.7 in.)	1715 mm (67.5 in.)	1820 mm (71.7 in.)
16.9-24 8PR R4	INT^a	INT^a	INT^a	INT^a	1512 mm (59.5 in.)	1617 mm (63.7 in.)	1715 mm (67.5 in.)	1820 mm (71.7 in.)
19.5L-24 10PR I3	INT^a	INT^a	INT^a	INT^a	1512 mm (59.5 in.)^b	1617 mm (63.7 in.)	1715 mm (67.5 in.)	1820 mm (71.7 in.)
13.6-28 4PR R1	INT^a	INT^a	INT^a	1417 mm (55.8 in.)	1494 mm (58.8 in.)	1603 mm (63.1 in.)	1697 mm (66.8 in.)	1806 mm (71.1 in.)
14.9-28 6PR R1	INT^a	INT^a	INT^a	1417 mm (55.8 in.)^b	1494 mm (58.8 in.)	1603 mm (63.1 in.)	1697 mm (66.8 in.)	1806 mm (71.1 in.)
16.9-28 6PR R1	INT^a	INT^a	INT^a	INT^a	1494 mm (58.8 in.)	1603 mm (63.1 in.)	1697 mm (66.8 in.)	1806 mm (71.1 in.)
16.9-30 6PR R1	INT^a	INT^a	INT^a	INT^a	1494 mm (58.8 in.)	1603 mm (63.1 in.)	1697 mm (66.8 in.)	1806 mm (71.1 in.)
18.4-30 6PR R1	INT^a	INT^a	INT^a	INT^a	1496 mm (58.9 in.)	1598 mm (62.9 in.)	1700 mm (66.9 in.)	1801 mm (70.9 in.)
15.5-38 6PR R1	INT^a	INT^a	INT^a	1414 mm (55.7 in.)	1496 mm (58.9 in.)	1598 mm (62.9 in.)	1700 mm (66.9 in.)	1801 mm (70.9 in.)
^aInterference (Do not use)
^bNot available with Cab or IOOS.

MULTI-POSITION REAR VEGGIE WHEELS TREAD WIDTH Centerline-to-Centerline
	Diagram
Tire	A	B	C	D	E	F	G	H
230/95R48 R1	1096 mm (43.2 in.)	1201 mm (47.3 in.)	1328 mm (52.3 in.)	1432 mm (56.4 in.)	1503 mm (59.2 in.)	1760 mm (69.3 in.)	1734 mm (68.3 in.)	1839 mm (72.4 in.)

OUO1080,00002CC -19-20NOV03-3/4

MULTI-POSITION REAR HI-CROP WHEELS TREAD WIDTH Centerline-to-Centerline
	Diagram
Tire	A	B	C	D	E	F	G	H
13.6-38 6PR R2	INT^a	1400 mm (55.1 in.)	1498 mm (59.0 in.)	1600 mm (63.0 in.)	1698 mm (66.9 in.)	1800 mm (70.9 in.)	1898 mm (74.7 in.)	2000 mm (78.7 in.)
230/95R40 R1	INT^a	1361 mm (53.6 in.)	1537 mm (60.5 in.)	1633 mm (64.3 in.)	1664 mm (65.5 in.)	1761 mm (69.3 in.)	1937 mm (76.3 in.)	2034 mm (80.1 in.)
^aInterference (Do not use)

OUO1080,00002CC -19-20NOV03-4/4
