Replace Headlight Bulb-Late Model Tractor

1. Remove headlight connector (A).

2. Remove dust boot (B).


A-Headlight Connector
B-Dust Boot

LV5055

OUO1080,00002CF -19-20NOV03-1/2

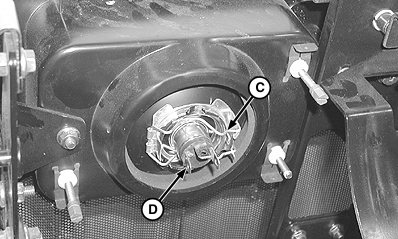

3. Release spring clip (C).

4. Remove bulb (D).

5. Install bulb, spring clip, seal and connector in reverse order.


C-Spring Clip
D-Bulb

LV8580

OUO1080,00002CF -19-20NOV03-2/2
