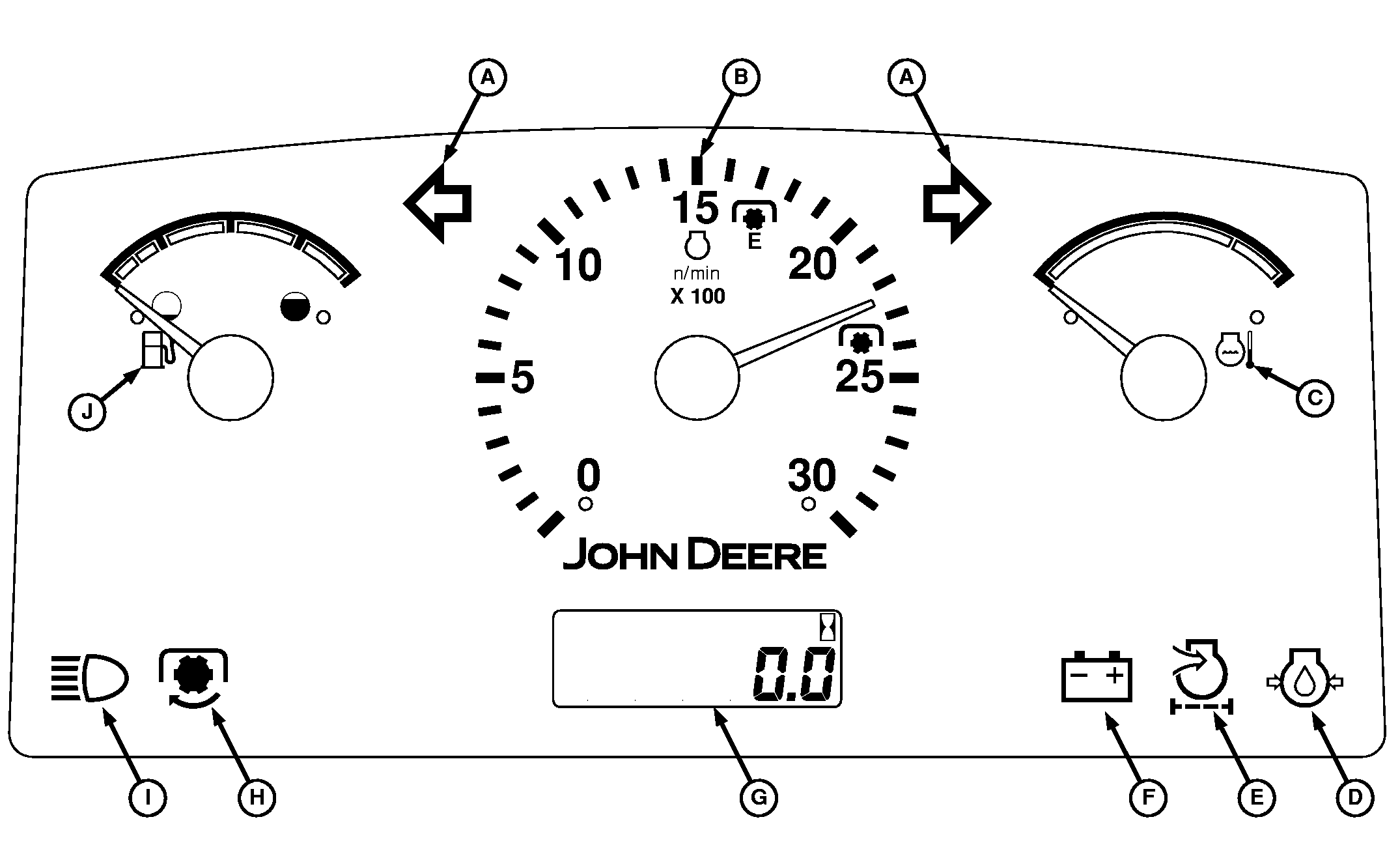

Instrument (Dash) Panel-Late Model Tractor

LV8401


A-Turn Signal Direction Indicators
B-Tachometer
C-Coolant Temperature Gauge


D-Engine Oil Pressure Indicator
E-Air Restriction Indicator


F-Charging System Indicator
G-Hour Meter (LED Digital)
H-PTO Engaged Indicator


I-High Beam Indicator
J-Fuel Gauge

OUO1080,00002D0 -19-20NOV03-1/1
