Replace Flood Light Bulb-Late Model Tractor (Straddle Mount, Hi-Crop and Isolated Open Operator Station)

1. Disconnect wiring harness connector (A) from flood light bulb (B).

2. Rotate flood light bulb counterclockwise and remove from flood light housing (C). Replace flood light bulb.

3. Install flood light bulb into flood light housing and rotate clockwise.

4. Connect wiring harness connector to flood light bulb.

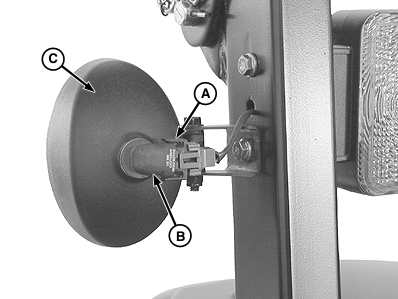

A-Wiring Harness Connector
B-Flood Light Bulb
C-Flood Light Housing

LV8585

OUO1080,00002D1 -19-20NOV03-1/1
