Replace Fender Light Bulb-Late Model Tractor (Isolated Open Operator Station)

NOTE: Left side fender light is shown. Procedure for right side fender light is the same.

1. Disconnect wiring harness connector (B) from fender light bulb (A).

2. Rotate fender light bulb counterclockwise and remove from fender light housing (C). Replace fender light bulb.

3. Install fender light bulb into fender light housing and rotate clockwise.

4. Connect wiring harness connector to fender light bulb.

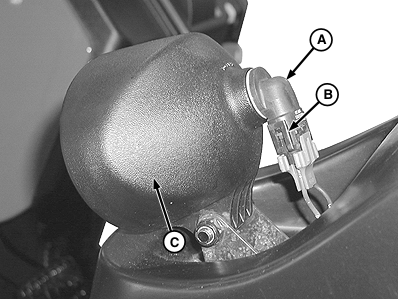

A-Fender Light Bulb
B-Wiring Harness Connector
C-Fender Light Housing
