Tread Settings-Adjustable Front Axle-Late Model Tractor
|
|
|

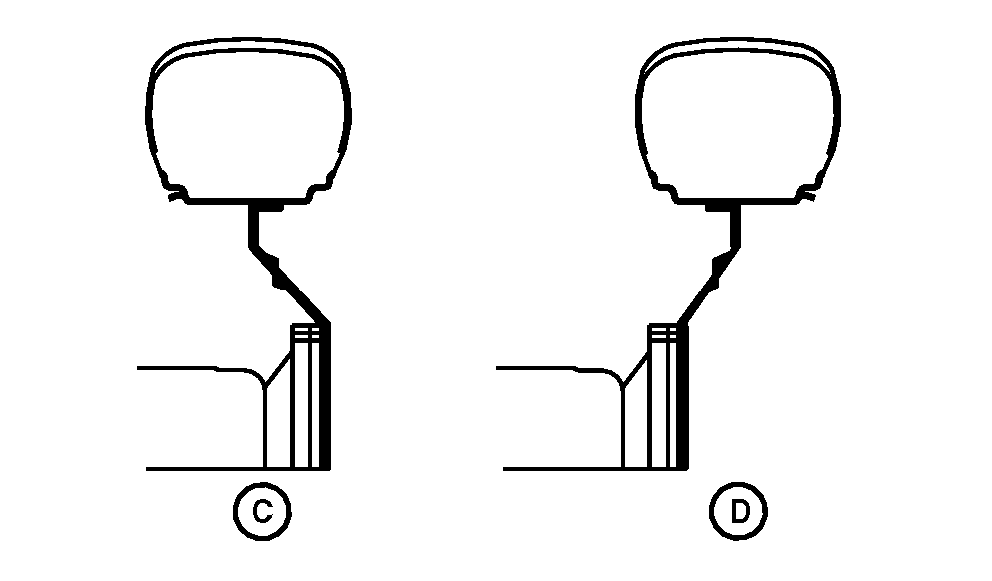

Front rims are offset. With some tires, this provides two tread spacings at each axle setting. |
| ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram C Centerline-to-Centerline |
||||||
|---|---|---|---|---|---|---|
| Tread Positiona | ||||||
| Tire | 1 | 2 | 3 | 4 | 5 | 6 |
| 6.50-16 | 1449 mm (57.0 in.) |
1549 mm (61.0 in.) |
1649 mm (64.9 in.) |
1749 mm (68.9 in.) |
1849 mm (72.8 in.) |
1949 mm (76.7 in.) |
| 7.50-16 | 1449 mm (57.0 in.) |
1549 mm (61.0 in.) |
1649 mm (64.9 in.) |
1749 mm (68.9 in.) |
1849 mm (72.8 in.) |
1949 mm (76.7 in.) |
| 9.5L-15 | 1468 mm (57.8 in.) |
1568 mm (61.7 in.) |
1668 mm (65.7 in.) |
1768 mm (69.6 in.) |
1868 mm (73.5 in.) |
1968 mm (77.5 in.) |
| 10.0-15 | 1468 mm (57.8 in.) |
1568 mm (61.7 in.) |
1668 mm (65.7 in.) |
1768 mm (69.6 in.) |
1868 mm (73.5 in.) |
1918 mm (75.5 in.) |
| 11L-15 | 1473 mm (58.0 in.) |
1573 mm (61.9 in.) |
1673 mm (65.9 in.) |
1773 mm (69.8 in.) |
1873 mm (73.7 in.) |
1973 mm (77.7 in.) |
| 27/9.5-15 | INTb | 1546 mm (60.9 in.) |
1646 mm (64.8 in.) |
1746 mm (68.7 in.) |
1846 mm (72.7 in.) |
1946 mm (76.6 in.) |
| 27/12LL-15 | 1477 mm (58.1 in.) |
1577 mm (62.1 in.) |
1677 mm (66.0 in.) |
1777 mm (70.0 in.) |
1877 mm (73.9 in.) |
1977 mm (77.8 in.) |

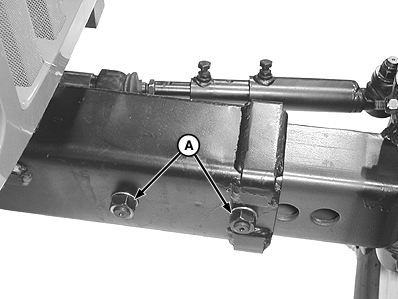

| aTread position 1 is with axle adjustment at its most inward location. See Adjust Front Axle Tread Width in this section. | ||||||
| bInterference (Do not use) | ||||||
OUO1080,00002D5 -19-20NOV03-1/2 |
| ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram D Centerline-to-Centerline |
||||||
|---|---|---|---|---|---|---|
| Tread Positiona | ||||||
| Tire | 1 | 2 | 3 | 4 | 5 | 6 |
| 6.50-16 | 1583 mm (62.3 in.) |
1683 mm (66.3 in.) |
1783 mm (70.2 in.) |
1883 mm (74.1 in.) |
1983 mm (78.1 in.) |
2083 mm (82.0 in.) |
| 7.50-16 | 1583 mm (62.3 in.) |
1683 mm (66.3 in.) |
1783 mm (70.2 in.) |
1883 mm (74.1 in.) |
1983 mm (78.1 in.) |
2083 mm (82.0 in.) |
| 9.5L-15 | 1549 mm (61.0 in.) |
1649 mm (64.9 in.) |
1749 mm (68.9 in.) |
1849 mm (72.8 in.) |
1949 mm (76.7 in.) |
2049 mm (80.7 in.) |
| 10.0-15 | 1549 mm (61.0 in.) |
1649 mm (64.9 in.) |
1749 mm (68.9 in.) |
1849 mm (72.8 in.) |
1949 mm (76.7 in.) |
2049 mm (80.7 in.) |
| 11L-15 | 1554 mm (61.2 in.) |
1654 mm (65.1 in.) |
1754 mm (69.1 in.) |
1854 mm (73.0 in.) |
1954 mm (76.9 in.) |
2054 mm (80.9 in.) |
| 27/9.5-15 | 1527 mm (60.1 in.) |
1627 mm (64.1 in.) |
1727 mm (68.0 in.) |
1827 mm (71.9 in.) |
1927 mm (75.9 in.) |
2027 mm (79.8 in.) |
| 27/12LL-15 | 1559 mm (61.4 in.) |
1659 mm (65.3 in.) |
1759 mm (69.3 in.) |
1859 mm (73.2 in.) |
1959 mm (77.1 in.) |
2059 mm (81.1 in.) |
| aNumber 1 position is with axle adjustment at its most inward location. See Adjust Front Axle Tread Width in this section. | ||||||
OUO1080,00002D5 -19-20NOV03-2/2 |
