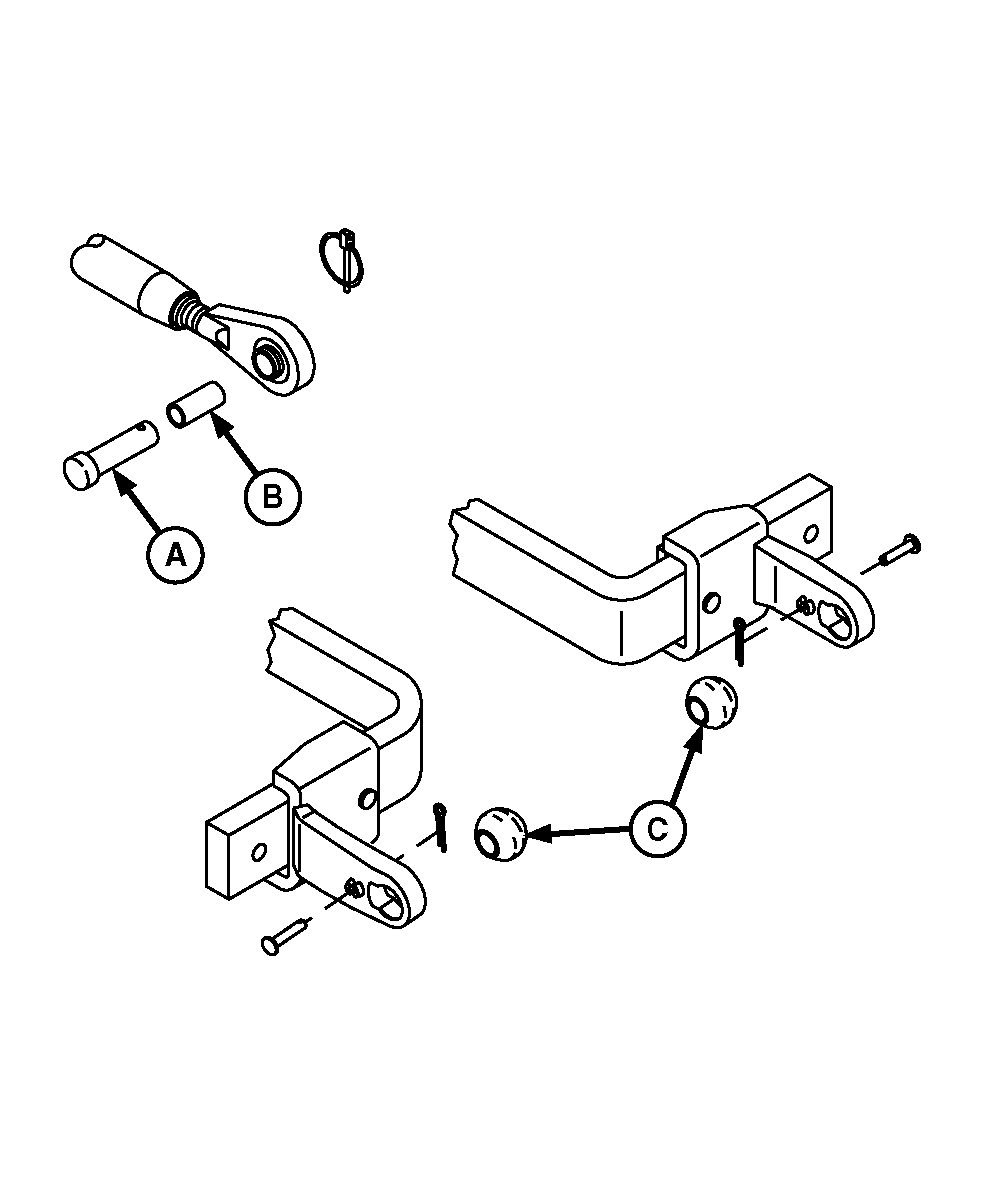

Converting Category II Hitch to Category IN or Category ITractor center link and draft link ends are sized for Category II implement attaching pins. If Category IN or Category I implements are to be used, the Category II hitch can be converted as follows: 1. Insert reducer bushing (B) in center link end. Smaller implement mast pin (A) is also needed when bushing is installed.2. Replace draft link balls (C). See your John Deere dealer for parts.
|
|
AG,OUO1043,185 -19-06SEP04-1/1 |
