Connecting and Operating Single-Acting Cylinder

Single-acting cylinder should only be connected to extend coupler (A).

IMPORTANT: Volume of oil required to extend cylinder will lower transmission-hydraulic oil level. With cylinder fully extended, check oil level and fill to proper level (visible at the bottom of the top sight glass). (See CHECKING TRANSMISSION-HYDRAULIC OIL LEVEL in Lubrication section.)

Pull SCV control lever back to pressurize and extend single acting cylinder.

Push SCV control lever full forward to "float" position to retract cylinder.

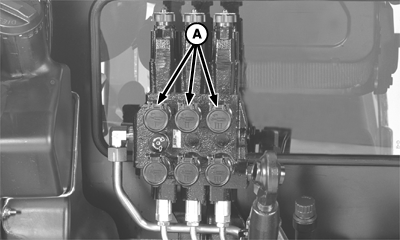

A-Extend Coupler

OUMX005,000189E -19-08JUL04-1/1
