Using Deluxe SCV to Operate Loader
 CAUTION:
Avoid injury or death caused by falling loads. When using Deluxe SCV to operate loader, detents must be set in No Detent (Loader) positions (A), for loader movement to stop when control lever is released. Moving control lever to a detented position would cause the loader to unexpectedly rise to full height and the load to fall back on the operator or suddenly lower to the ground causing crushing injury.

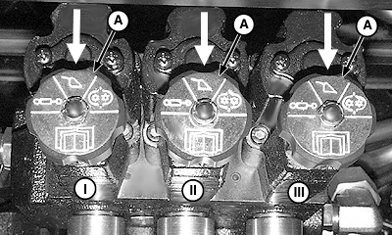

A-No Detent (Loader) Position
|
No Detent (Loader) Position
|
