Tighten Bolts-Rear Axle
Tighten hardware (A and B) to specifications.
Specification
|
Rear Wheel Rim-to-Disk Nuts (A)
-Torque
|
245 N·m
|
(180 lb-ft)
|
|
Rear Steel Wheel Disk-to-Hub M20 Bolts
-Torque
|
600 N·m
|
(445 lb-ft)
|

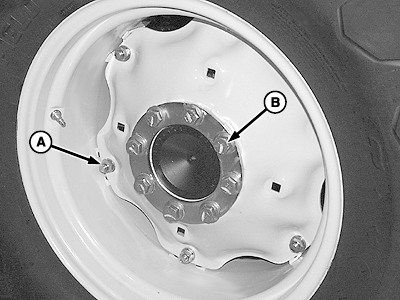

A-Rear Wheel Rim-to-Disk Nuts
B-Rear Wheel Disk-to-Hub Bolts
|
