Service Air Cleaner

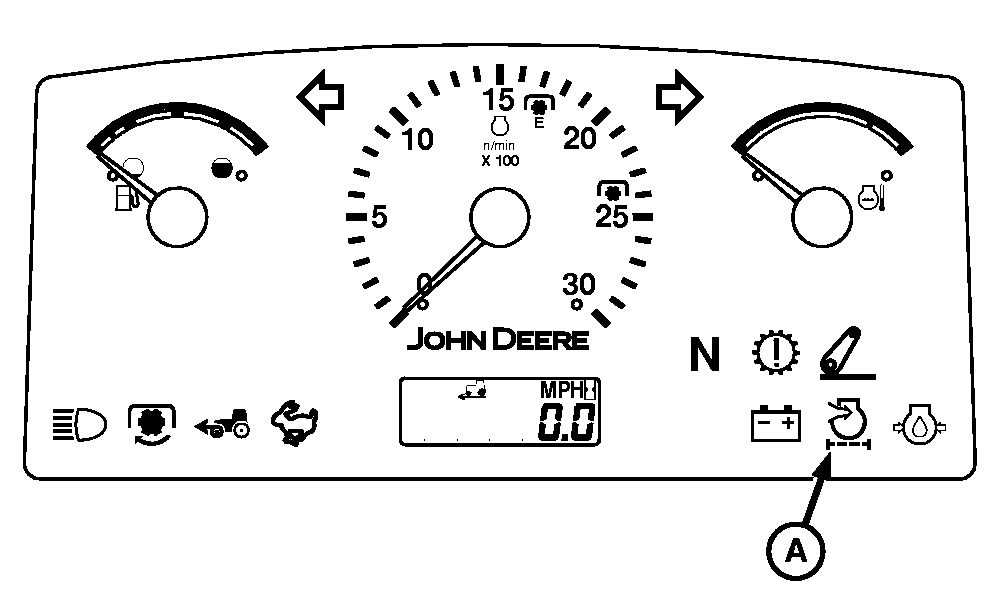

A dual element air cleaner is standard. A dirty primary element is indicated when the air restriction indicator (A) is on. A dirty element can result in loss of power or excessive smoke.

A-Air Restriction Indicator

OUMX005,000191C -19-28APR05-1/3

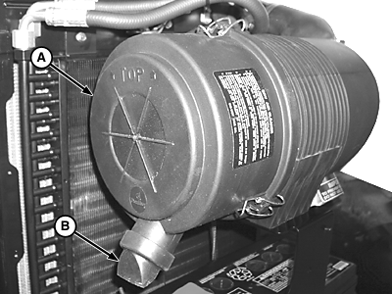

IMPORTANT: Check unloader valve (B) frequently. Empty as often as needed to keep it from filling with dust. If valve is allowed to fill with dust, air cleaner element will plug rapidly.

Service air cleaner (A) when indicator light illuminates, every 300 hours, or at least once a year.

A-Air Cleaner
B-Dust Unloader Valve

OUMX005,000191C -19-28APR05-2/3

Replace primary element (A) at least once a year.

The secondary element (B) should be removed only when being replaced, normally once a year.

See procedure in REPLACING AIR CLEANER ELEMENTS in this section.

A-Primary Element
B-Secondary Element

OUMX005,000191C -19-28APR05-3/3
