Air Intake System Components

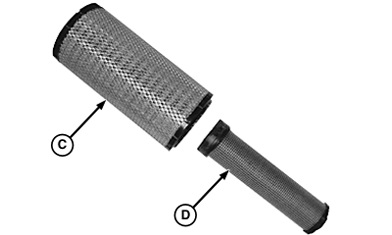

Air enters the intake system through air cleaner inlet (A). A major portion of the dust is separated out by air turbulence action of the primary element (C) and passed out into the radiator inlet air flow through the dust unloader valve (B). If the primary element becomes plugged, dust is filtered out by the secondary element (D).

A-Air Cleaner Inlet
B-Dust Unloader Valve
C-Primary Element
D-Secondary Element

OUMX005,000191D -19-28APR05-1/1
