Inspecting Elements

1. Hold a bright light inside elements (A or B) and check carefully for holes. Discard any element which shows the slightest hole.

2. Be sure outer screen is not dented. Vibration would quickly wear a hole in filter.

3. Be sure rubber sealing surfaces on BOTH ends are in good condition. If damaged, replace element.

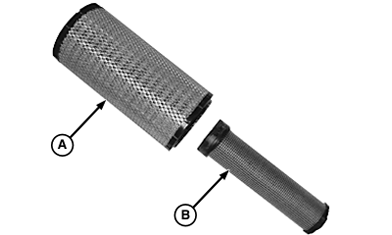

A-Primary Element
B-Secondary Element

LV12635

OUMX005,0001920 -19-28APR05-1/1
