Cleaning Engine Crankcase Vent Tube

SERVICE INTERVAL - 600 HOURS



causym CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

Remove crankcase vent tube (A) from engine. Wash in solvent or blow clean with compressed air. Install vent tube to engine. Be sure vent tube is not kinked or pinched.

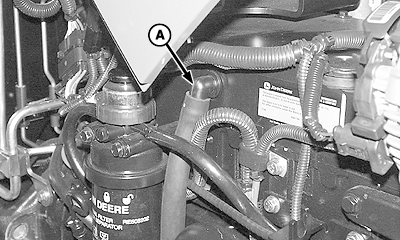

LV9530

Right-Hand Side


A-Crankcase Vent Tube

OUMX005,000192D -19-25JUL04-1/1
