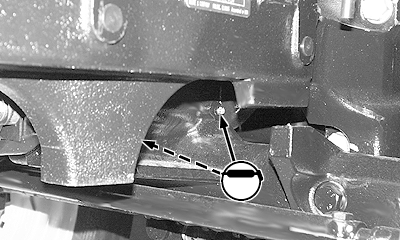

Lubricating Front Axle Pivot Pin

Adjustable Front Axle

Lubricate front and rear lubrication fittings with several shots of multipurpose grease. (See Fuel, Lubricants and Coolant section).

LV10304

Left-Hand Side

OUMX005,000193E -19-27JUL04-1/2

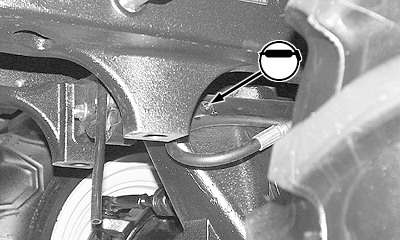

MFWD Axle

Lubricate lubrication fitting with several shots of multipurpose grease. (See Fuel, Lubricants and Coolant section).

LV10305

Left-Hand Side

OUMX005,000193E -19-27JUL04-2/2
