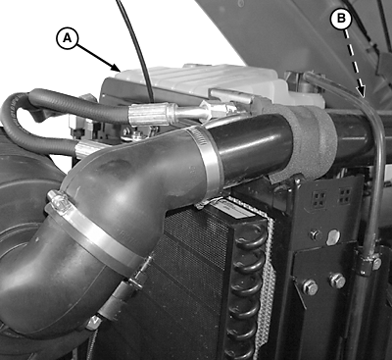

Engine Cooling System ComponentsIMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes. The tractors utilize a remote coolant recovery tank (A). Make-up coolant is added to the coolant recovery tank rather than directly to the radiator.
|
|
OUMX005,0001945 -19-28APR05-1/1 |
