Checking Coolant Level

SERVICE INTERVAL - 50 HOURS



causym CAUTION: Remove cap (A) from coolant recovery tank only when engine is cold. Slowly loosen cap to relieve pressure before removing completely.

IMPORTANT: Periodically check coolant level in radiator. If cap should become defective, coolant would not be drawn from recovery tank and could cause the engine to overheat. Replace cap as necessary.

1. Raise hood.

2. Check level in coolant recovery tank (B), BEFORE starting tractor.

NOTE: Coolant level should be checked when engine is COOL.

3. If engine is COOL and level is below "MIN" mark, remove cap (A) and add coolant to recovery tank to bring level between "MIN" and "MAX" mark. (See Fuel, Lubricants and Coolant section.)

4. Install cap and lower hood.

TS281

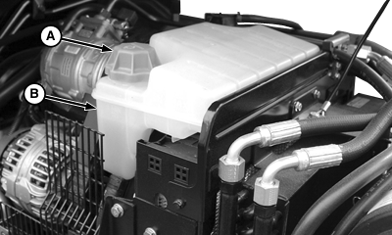

LV12652


A-Cap
B-Coolant Recovery Tank

OUMX005,0001946 -19-28APR05-1/1
