Using Engine Coolant Heater

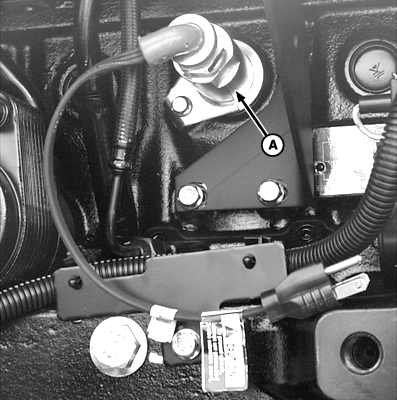

Before connecting heater to power source, be sure that the element is immersed in coolant. NEVER energize heater in air. Doing so can cause element sheath to burst causing personal injury. The 110-volt coolant heater (A) is located on side of engine. By warming engine coolant the heater reduces oil drag, eases starting and shortens warm-up time. Connect heater plug to a ground fault protected 110-volt electrical outlet.
|
|
CAUTION:
To avoid shock or hazardous operation, always use a three-wire heavy-duty electrical cord (minimum gauge 10 AWG and no longer than 7.6 m [25 ft]) equipped with three connectors. If a two-to-three contact adapter is used at the wall receptacle, always connect green wire to a good ground.
OUMX005,000196A -19-03AUG04-1/1 |
