Replacing Loader Light Bulb (If Equipped)

causym CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying fragments. (See HANDLING HALOGEN LIGHT BULBS SAFELY in this section.)

1. Remove two screws and cover (A).


A-Cover

LV9548

OUMX005,000196C -19-03AUG04-1/2

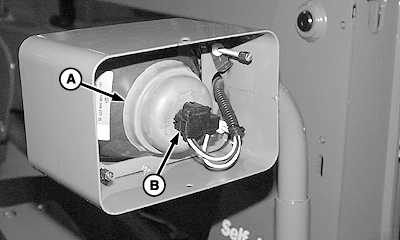

2. Disconnect wiring harness plug (B).

3. Remove dust boot (A).

4. Unlatch retaining spring (C) and remove light bulb (D).

5. Install new bulb in reverse order of removal.

6. Adjust, if necessary. (See ADJUSTING HEADLIGHTS in this section.)


A-Dust Boot
B-Wiring Harness Plug
C-Retaining Spring
D-Light Bulb

LV9549
LV9550
LV9512

OUMX005,000196C -19-03AUG04-2/2
