Operating PowrReverser™ Transmission with Hi/Lo (If Equipped)

PowrReverser™ transmission is available with push button Hi/Lo split-shift feature, where each range and gear combination is split for more exact speed control.

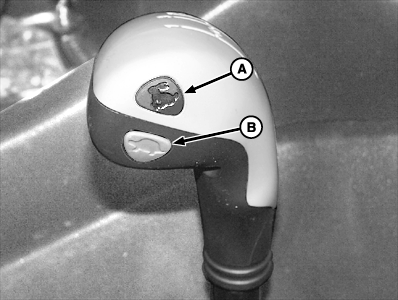

Range and gear shifts are made as previously described in OPERATING PowrReverser™ TRANSMISSION, and then split-shifted using Hi-speed (rabbit) (A) and Lo-speed (turtle) (B) switches. Use switches to up-shift and down-shift within the selected range and gear. Indicator (C) lights when Hi-speed is selected.

Using range and gear shift levers and Hi/Lo split-shift feature, twenty-four forward and reverse speeds are available. See GROUND SPEED ESTIMATES-PowrReverser™ TRANSMISSION WITH HI/LO, for range, gear settings and corresponding speeds.

A-Hi Speed
B-Lo Speed
C-Hi Speed Indicator

OUMX005,0001975 -19-05AUG04-1/1
