Reversing 540/1000 RPM PTO Stub Shaft (If Equipped)

CAUTION: Avoid personal injury. PTO shaft may be hot from operation. Wear gloves and allow shaft to cool before changing.

PTO stub shaft has 6 splines for operating 540 rpm implements and 21 splines for 1000 rpm implements.

NOTE: A flattened area on the stub shaft facilitates snap ring removal and installation.

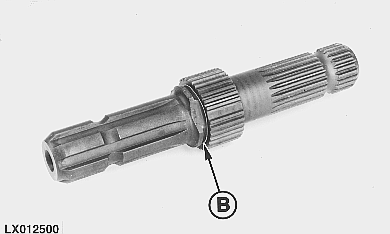

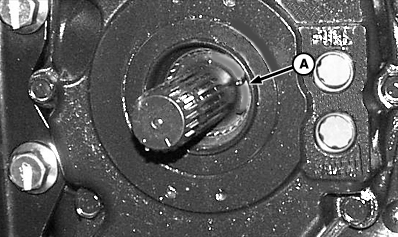

1. Align snap ring ends with access flat. Remove snap ring (A) and pull out stub shaft (B).

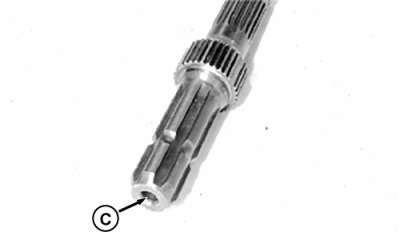

2. Clean stub shaft thoroughly and coat with grease. Be sure end bore (C) is clean when installing shaft for 1000 rpm operation.

3. Turn stub shaft end-for-end and insert in PTO housing until snap ring groove is visible.

4. Install snap ring.

5. Move shift lever to agree with stub shaft position. See SELECTING CORRECT PTO SPEEDS (IF EQUIPPED) in this section.

A-Snap Ring
B-Stub Shaft
C-Bore

OUMX005,0001991 -19-11AUG04-1/1
