Use Seat Belt and Foldable ROPS Properly-Open Station

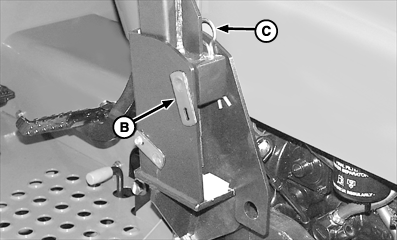

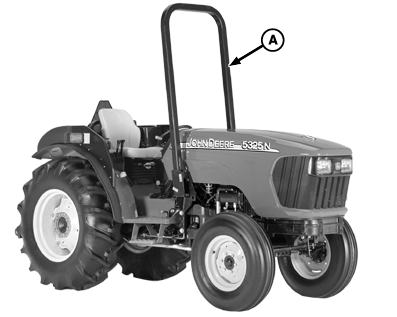

This tractor is equipped with a foldable Roll-Over Protective Structure (ROPS). The ROPS (A) should be kept in the "up" or extended position (shown) with pins (B) retained with locking pins (C), except when it is necessary to fold it for low clearance operations.

When the ROPS is in the "up" or extended position, ALWAYS use your seat belt to minimize chance of injury from an overturn accident.

DO NOT use seat belt when ROPS is folded down.

CAUTION: If the seat belt system, including the mounting hardware, buckle, belt, or retractor shows any sign of damage such as cuts, fraying, extreme or unusual wear, discoloring or abrasion, the entire seat belt system should be replaced immediately. Replace the belt system only with replacement parts approved for your machine.

Inspect seat belts and mounting hardware. If seat belt needs to be replaced, see your John Deere dealer.

A-ROPS
B-Pin (2 used)
C-Locking Pin (2 used)

OUMX005,00019AB -19-26AUG04-1/1
