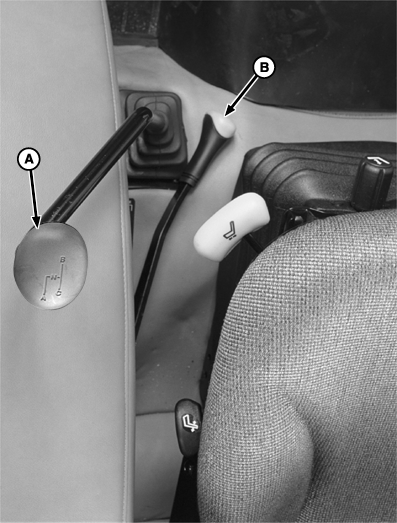

A-Gear Shift Lever
B-PTO 540/540E Shift Lever

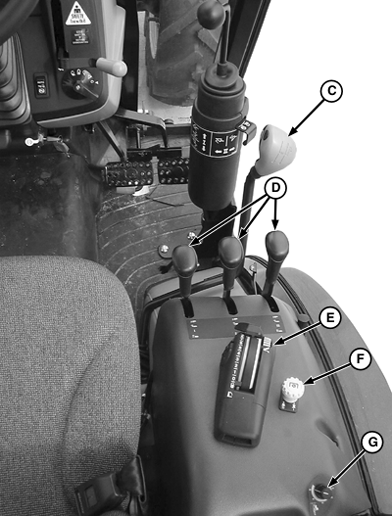

C-Range Shift Lever

D-SCV Control Levers
E-EH Hitch Controls (Refer to Rockshaft Controls section)

F-EH PTO Control

G-Load/Depth Control

OUMX005,00019B8 -19-27APR05-1/2

A-Convenience Electrical Outlet
B-Rear Window Wiper/Washer Switch (If Equipped)

OUMX005,00019B8 -19-27APR05-2/2
