Operating Lights

NOTE: If equipped with loader lights (attached to loader mounting frames), refer to OPERATING LOADER LIGHTS (IF EQUIPPED) in this section.

causym CAUTION: To alert drivers of other vehicles to your movements, use flashing warning lights whenever you travel on public roads. Flashing lights come ON in Warning, Transport 1 and Transport 2 positions.

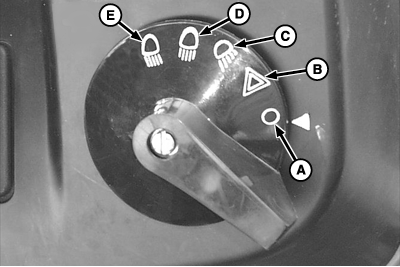

Light switch has four operating positions:

Warning position (B): Use when transporting on public roads during daylight hours.

causym CAUTION: Do not use work lights when transporting on public roads. Bright clear lights can blind or confuse drivers of other vehicles as they approach from the front or rear.

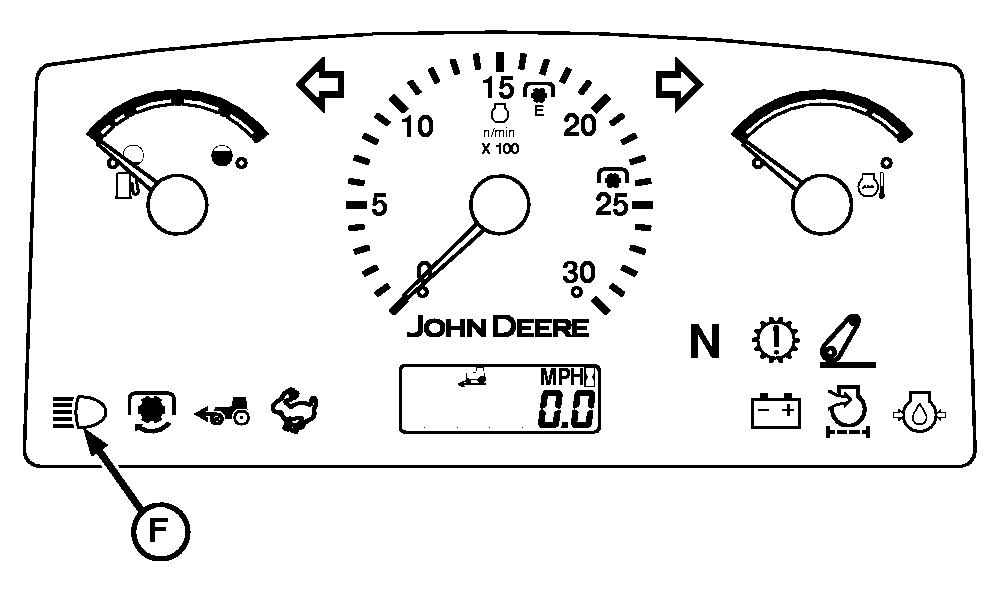

NOTE: Indicator (F) will light whenever high beam headlights are ON.

Work Light position (C): Use to activate front (cab) and rear facing work light(s) and high beam headlights.

Transport 1 position (D): Use when traveling on public roads at night or during daylight hours when visibility is limited.

Transport 2 position (E): Use to dim headlights to low beams when meeting other vehicles as they approach from the front.

LV09152

Light Switch

LV09155


A-Off Position
B-Warning Position
C-Work Light Position
D-Transport 1 Position
E-Transport 2 Position
F-High Beam Indicator Light

OUMX005,00019C0 -19-26AUG04-1/2

IMPORTANT: Keep lighting in good working order. Repair or replace damaged lighting immediately.

Keep headlights properly adjusted. See ADJUSTING HEADLIGHTS in Maintenance-Electrical System section.

Switch Position Warning Lights
Ambera		 Taillights
Reda		 Work Light(s)b
Rear Facing		 Work Lights
Front Facing		 Headlights
Front Grille
A-Off Off Off Off Off Off
B-Warning On Flashing Off Off Off Off
C-Work Light Off Off On On On-High Beams
D-Transport 1 On Flashing On Steady Off Off On-High Beams
E-Transport 2 On Flashing On Steady Off Off On-Low Beams
aWhen turn signal is activated, amber and red lights on turn-side flash, while opposite side lights shine steady.
bStandard equipment. Open Station has a single work light mounted behind the operator's seat. Cab tractors have four work lights (2 front and 2 rear) mounted to the roof.
