Adjusting Rear Facing Work Light-Open Station

NOTE: Up and down adjustments are made by hand, without tools. For side-to-side adjustment:

1. Loosen bracket mounting hardware.

2. Turn work light (A) to desired position.

3. Tighten hardware securely.

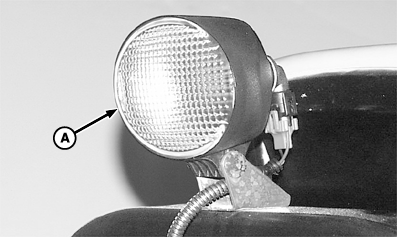

A-Work Light

OUMX005,00019C1 -19-26AUG04-1/1
