Operating Rotating Beacon Light (If Equipped)

Depress switch (B) to activate light (A).

To remove light for storage or clearance:

1. Loosen wing nut and lift light from tube.

2. Install cap on tube end to protect light socket.

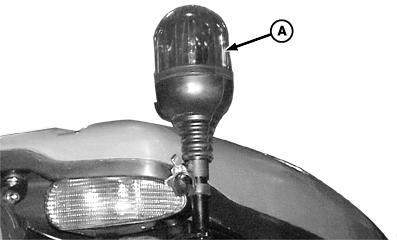

A-Light

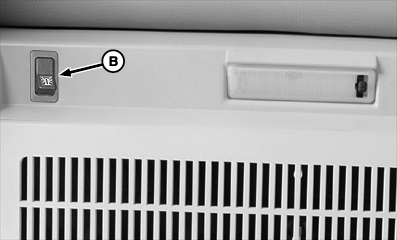

B-Switch

LV9724
LV9725

OUMX005,00019C3 -19-26AUG04-1/1
