Changing Engine Speeds

To increase speed, push hand throttle (A) forward.

To temporarily increase engine speed above hand throttle setting, depress foot throttle (B).


A-Hand Throttle
B-Foot Throttle

LV12625

Hand Throttle

LV9780

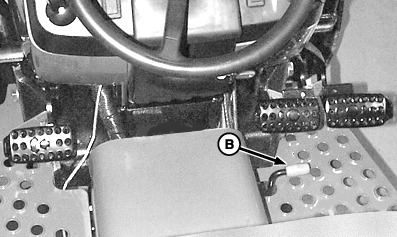

Foot Throttle (Open Station Shown; Cab Similar)

OUMX005,00019D0 -19-27APR05-1/1
