Storing Tractor

IMPORTANT: Any time tractor will not be used for several months, use this procedure to minimize corrosion and deterioration. Use an AR41785 Engine Storage Kit and an extra 0.95 L (1 pt) of AR41870 Corrosion Inhibitor.

1. Service air cleaner (A). (See SERVICE AIR CLEANER in General Maintenance and Inspection section.)

2. If coolant has been in tractor for two years, flush cooling system. (See your John Deere dealer.) Add 50 percent antifreeze water mixture. Test coolant for adequate cold weather protection.

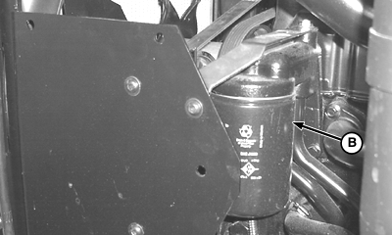

3. Change engine oil and filter (B). (See CHANGING ENGINE OIL AND FILTER in Lubrication section.)

4. Drain fuel and add back 4 L (1 gal) of fuel. Then add 0.4 L (12 oz) of corrosion inhibitor.


A-Air Cleaner
B-Engine Oil Filter

LV12655
LV12648

5325N (Left-Hand Side)

LV9469

5425N and 5525N (Right-Hand Side)

OUMX005,00019E0 -19-11JUN07-1/6

5. Add 0.25 L (9 oz) of corrosion inhibitor to transmission-hydraulic system fill port (A).

6. Depress clutch and start engine. Run engine until it reaches operating temperature. Also raise and lower rockshaft several times. Shut off engine.


A-Transmission-Hydraulic System Fill Port

LV12678

OUMX005,00019E0 -19-11JUN07-2/6

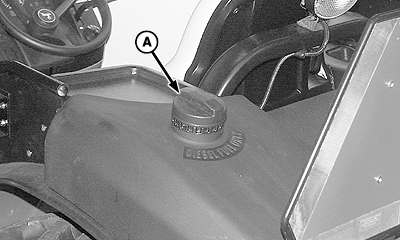

7. Add 0.5 L (16 oz) more inhibitor to fuel tank at filler/cap (A).

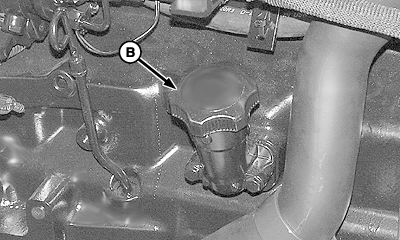

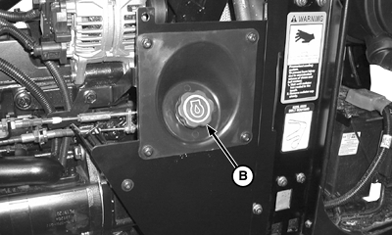

8. Add 0.5 L (16 oz) inhibitor to engine crankcase at filler (B).


A-Fuel Tank Filler/Cap
B-Crankcase Filler

LV9832

Fuel Tank Filler/Cap

LV12657

5325N

LV9472

5425N and 5525N (Left-Hand Side)

OUMX005,00019E0 -19-11JUN07-3/6

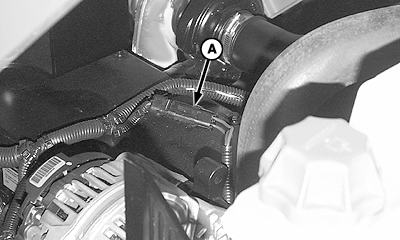

9. Disconnect fuel shut-off solenoid wiring lead/connector (A). (This will prevent engine from starting while cranking.)

10. Remove air intake hose at manifold. Pour 0.1 L (3 oz) inhibitor into manifold and replace hose. Pull hand throttle back to slow idle position. Crank engine only a few revolutions.

11. Remove fan belt after it has cooled.

12. Remove and clean battery. Store in a cool, dry place. Keep battery charged. 1

13. Block clutch pedal in the disengaged position.

14. Coat exposed metal surfaces, such as adjustable front axles, if extended, with grease or a corrosion inhibitor.


A-Fuel Shut-Off Solenoid Wiring Lead/Connector

LV9570

5325N

LV9473

5425N and 5525N

1Disconnect battery ground cable for short-term storage periods (30 to 90 days).

OUMX005,00019E0 -19-11JUN07-4/6

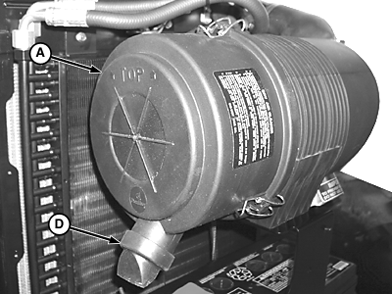

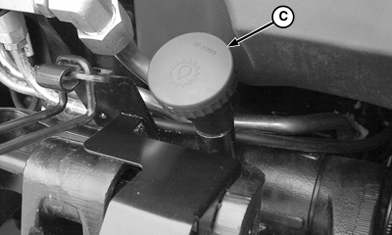

15. Use tape to seal air inlet hole (A), dust unloader valve (D), exhaust pipe, crankcase filler (B), fuel cap, coolant recovery tank, and transmission-hydraulic system filler/cap (C).

16. Cover dash with opaque material to prevent gauges from fading.

17. Raise tires off ground. Protect them from heat and sunlight.

18. Thoroughly clean tractor. Touch up any painted surfaces that are scratched or chipped.

19. If tractor must be stored outside, cover it with a waterproof material.


A-Air Cleaner Inlet Hole
B-Crankcase Filler
C-Transmission-Hydraulic System Filler/Cap
D-Dust Unloader Valve

LV12658
LV12657

5325N

LV9472

5425N and 5525N (Left-Hand Side)

LV12677

OUMX005,00019E0 -19-11JUN07-5/6

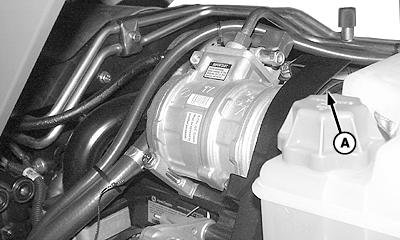

20. Cab: Rotate A/C compressor pulley (A) several turns once a month to prevent seizure of compressor.


A-A/C Compressor Pulley

LV9476

OUMX005,00019E0 -19-11JUN07-6/6
