Connecting Starter Wiring

IMPORTANT: Disconnect battery negative (ground) cable before servicing any part of electrical system. Make all other connections before connecting ground cable.

Connect large battery cable and alternator cable to large solenoid post (A). Connect the small white wire/connector to solenoid terminal (B).


A-Large Solenoid Post
B-Solenoid Terminal

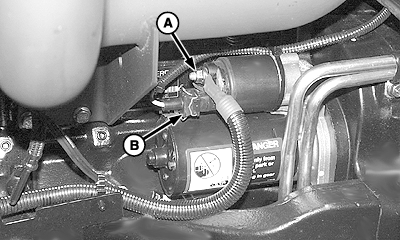

LV9494

5325N (Left-Hand Side)

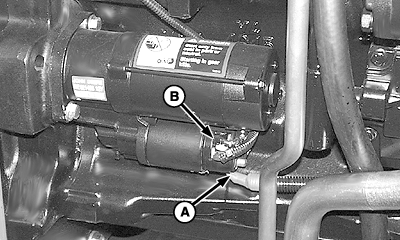

LV9495

5425N and 5525N (Right-Hand Side)

OUMX005,00019E5 -19-27AUG04-1/1
