Replacing Warning Light Bulb-Open Station

1. Remove two screws (A) and lens (B) from warning light housing.

2. Push in and twist bulb (C) to remove from socket.

3. Install new bulb, lens and screws to housing.


A-Lens Screw (2 used)
B-Lens
C-Light Bulb

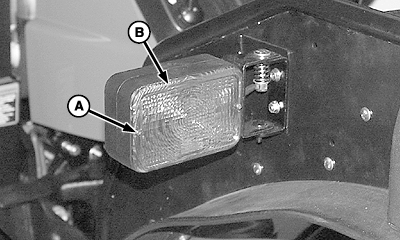

LV9849

Left-Hand Side Shown

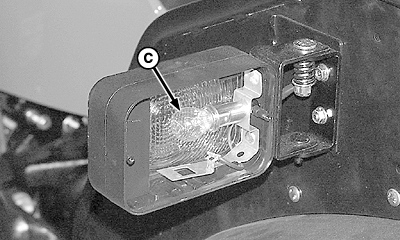

LV9850

OUMX005,00019E9 -19-27AUG04-1/1
