Fuel System Components-5425N and 5525N


A-Priming Pump
B-Bleed Screw
C-Fuel Filter/Water Separator
D-Fuel Injection Lines
E-Injection Pump
F-Electric Fuel Shut-Off

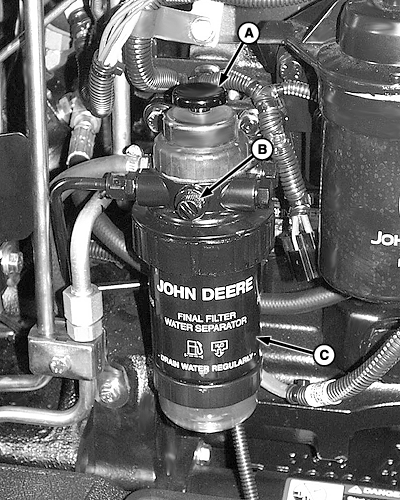

LV9573

Fuel Filter/Water Separator (Right-Hand Side)

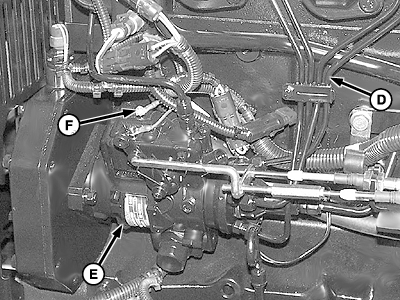

LV9574

Injection Pump (Left-Hand Side)

OUMX005,00019EE -19-28AUG04-1/1
