Replacing In-Line Fuel Filter

NOTE: Approximate fuel tank capacity is 72 L (19 gal).

In-line fuel filter is located along right-hand side of transmission, under floor plate.

1. Drain fuel tank. Refer to DRAIN WATER AND SEDIMENT FROM FUEL TANK AND FUEL FILTER in this section for drain location.

2. Remove in-line fuel filter (A).

3. Install new filter with "arrow" toward front of tractor.

4. Fill fuel tank. Refer to Fuel, Lubricants and Coolant section for correct fuel specifications.

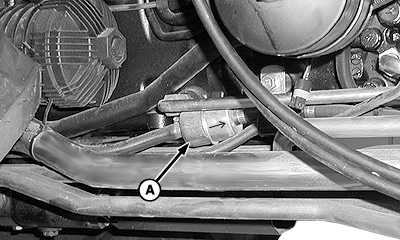

A-In-Line Fuel Filter

OUMX005,00019F2 -19-28AUG04-1/1
