Checking Engine Oil Level

IMPORTANT: 5425N and 5525N: During the first 100 hours of operation, fill with John Deere DIESEL ENGINE BREAK-IN OIL. (See Fuel, Lubricants and Coolant section for oil specifications.)

NOTE: Make sure to push dipstick all the way in to check oil level.

1. Park tractor on level ground, place transmission in park, turn off engine and remove key.

2. Pull out dipstick (A). Oil level should be between two marks on dipstick.

3. If level is low, add oil through oil filler hole (B) until even with upper mark. DO NOT overfill. Use seasonal viscosity grade oil. (See Fuel, Lubricants and Coolant section.)

IMPORTANT: Do not operate engine with oil level below low mark on dipstick.

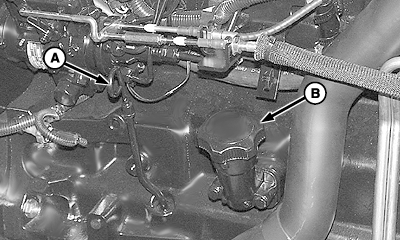

A-Engine Oil Dipstick
B-Engine Oil Filler Hole

OUMX005,00019F9 -19-28AUG04-1/1
