Changing Engine Oil and Filter-5425N and 5525N

SERVICE INTERVAL
  INITIAL - 100 HOURS
  REGULAR-500 HOURS using John Deere PLUS-50™ engine oil
  REGULAR-300 HOURS with other oils



IMPORTANT: During the first 100 hours of operation, fill with John Deere DIESEL ENGINE BREAK-IN OIL. (See Fuel, Lubricants and Coolant section for oil specifications.)

If diesel fuel has a high sulfur content, refer to DIESEL ENGINE OIL in Fuel, Lubricants and Coolant section.

1. Operate engine to warm oil.

2. Park tractor on level ground, place transmission in park, turn off engine and remove key.

3. Raise hood.

NOTE: Approximate engine crankcase oil capacity is 8.5 L (9 qt).

4. Remove oil drain plug (A) and drain oil.

5. Remove engine oil filter (B).

NOTE: Make sure old filter gasket is completely removed from manifold before installing new filter.

6. Apply a film of oil on new oil filter gasket and install new filter. Hand-tighten plus 1/2 turn.

7. Install drain plug.

8. Add seasonal viscosity grade oil to filler (C). (See Fuel, Lubricants and Coolant section.)

Specification

Engine Crankcase Oil -Capacity 8.5 L (9 qt)

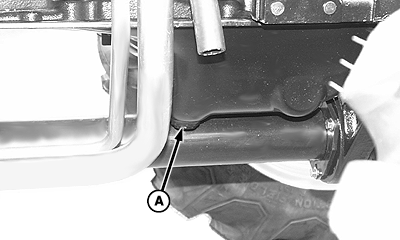

LV9606

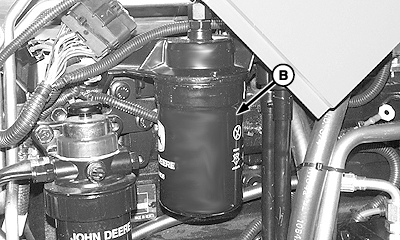

LV9469

Oil Filter (Right-Hand Side)

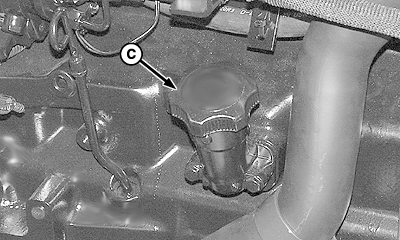

LV9607

Filler (Left-Hand Side)


A-Engine Oil Drain Plug
B-Engine Oil Filter
C-Crankcase Filler

PLUS-50 is a trademark of Deere & Company

OUMX005,00019FB -19-28AUG04-1/2

9. Start engine and check for leaks.

10. Stop engine and remove key. Recheck oil level.

11. Lower hood.

OUMX005,00019FB -19-28AUG04-2/2
